CrimpComponent folio · Battery · Renogy
RBT100LFP12S-BT
12V 100Ah Smart Lithium with built-in Bluetooth monitoring. Self-heating variants available.
Open in Crimp →

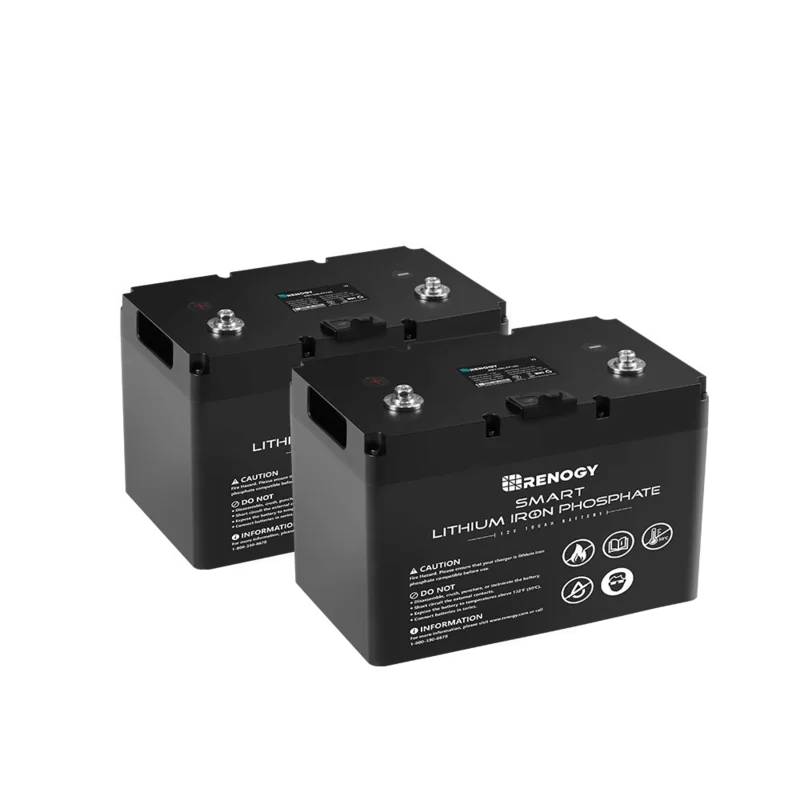

Renogy 100Ah Smart LiFePO4 · 2 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor95 mm²3/0 AWG
Fuse250 Apositive run
Voltage drop1.7%3 m one way
Design current200 A12.8 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Nominal voltage
- 13 V
- Capacity
- 100 Ah
- Maximum discharge
- 100 A
- Canvas footprint
- 200 × 80 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | bidi | 200 A |
| − | negative | bidi | 200 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 95 mm² (3/0 AWG) marine cable
- Four 95 mm² cable lugs matched to the equipment studs
- 250 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
See what it changes in your system
With JavaScript enabled, describe your existing boat, van, or off-grid system here. The model supplies topology; Crimp's engine computes the attachment, resized runs, checks, and supporting basket.
