Plan the wiringbefore you pullthe wire.
Draw your boat, van or off-grid system — 12 V or 24 V — from real parts. Crimp sizes every cable and fuse against ABYC E-11 and flags problems before installation.
Start drawing
Free · no account needed
works in the browser

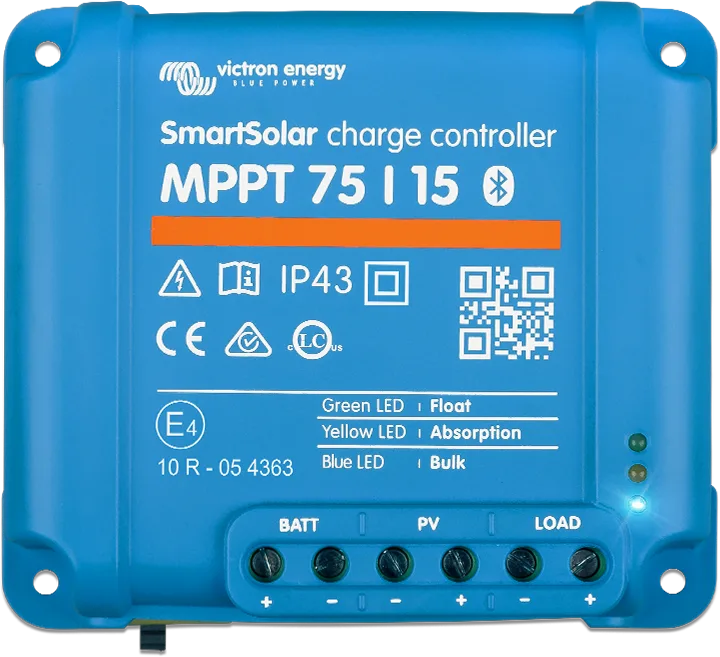

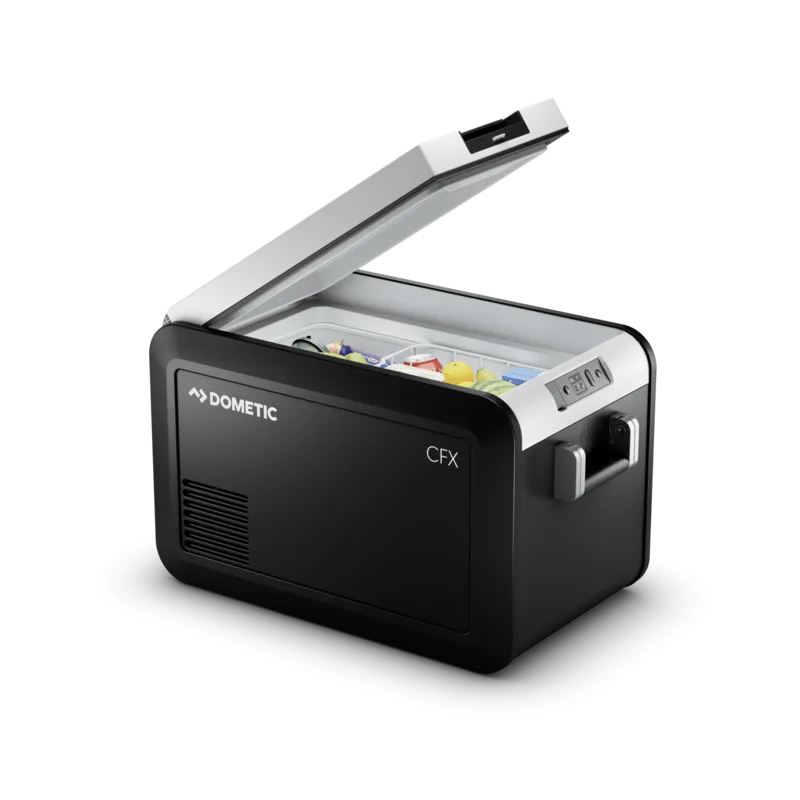

Fig. 1Live exampleExample: “A 100 Ah lithium battery, 175 W of solar through an MPPT, a fridge and cabin lights.”
Live canvas — hover any cable for its wire size and fuse.
Cabin-light run
C-009 · 3.5 m · calculated live
- Wire
- 1.5 mm² / AWG 16
- Fuse
- 3 A
- Voltage drop
- 1.3%
300+components in the palette
30+checks running as you draw
ABYC E-11wire and fuse sizing basis
A planning aid — verify every result with a qualified person before you build. Read the methodology.
From the parts list to a checked plan.
Choose what you own, connect the terminals, and get the answer on the drawing — not buried in a separate calculator.
02
Join the terminals
BAT +
sized run
BUS +BatteryPositive bus
Draw the system the way it will be installed, one positive and negative run at a time.
03
Catch the problem
Check before install
The DC-DC charger can pull more than the alternator behind it can supply.
Wire, fuse and voltage-drop results update while you draw, and 30+ checks flag what the drawing gets wrong.
Your tool identified I selected a larger amperage DC-DC charger and it would eventually smoke my small 75-amp alternator. I downsized to an 18-amp charger and all I can say is “Thank you — Thank you!”
Start small
One battery. One load. One sized cable.
Nothing to install and nothing to sign up for. Your drawings are saved on this device.
Start drawing
