CrimpComponent folio · Charger · Victron
Buck-Boost DC-DC 100A
Buck-boost DC-DC converter for Euro 6 smart-alternator vehicles. 100A output; programmable, supports B2B charging from 9–17V input.
Open in Crimp →

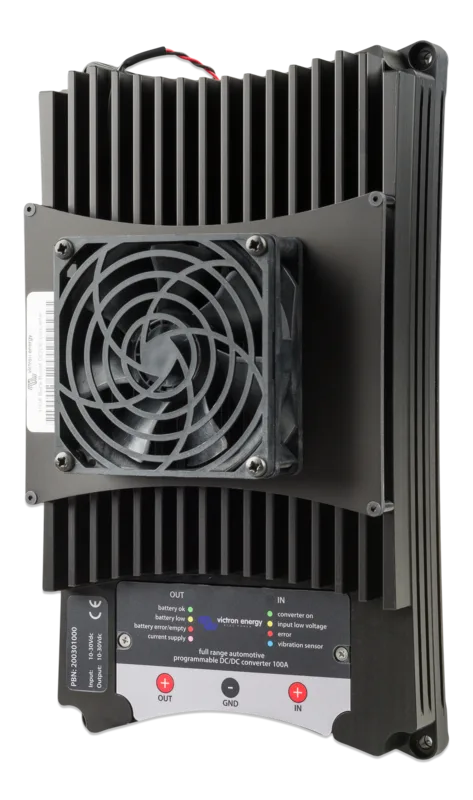

Victron Buck-Boost 100A · 4 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor35 mm²2 AWG
Fuse125 Apositive run
Voltage drop2.5%3 m one way
Design current100 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Rated output
- 100 A
- Typical charge current
- 95 A
- Canvas footprint
- 235 × 130 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| IN + | positive | input | 180 A |
| IN − | negative | input | 180 A |
| OUT + | positive | output | 100 A |
| OUT − | negative | output | 100 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 35 mm² (2 AWG) marine cable
- Four 35 mm² cable lugs matched to the equipment studs
- 125 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
