CrimpComponent folio · Charger · Victron
Buck-Boost DC-DC 50A
Buck-boost DC-DC converter for Euro 6 smart-alternator vehicles. 50A output; programmable, supports B2B charging from 7–35V input.
Open in Crimp →

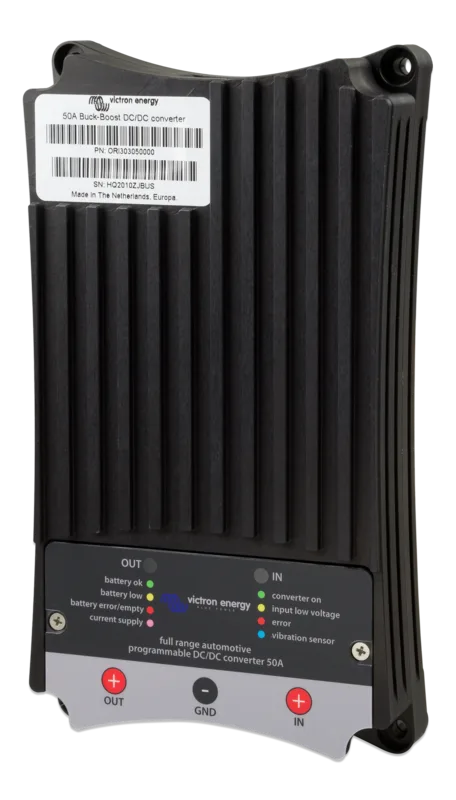

Victron Buck-Boost 50A · 4 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor16 mm²6 AWG
Fuse70 Apositive run
Voltage drop2.7%3 m one way
Design current50 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Rated output
- 50 A
- Typical charge current
- 48 A
- Canvas footprint
- 215 × 120 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| IN + | positive | input | 90 A |
| IN − | negative | input | 90 A |
| OUT + | positive | output | 50 A |
| OUT − | negative | output | 50 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 16 mm² (6 AWG) marine cable
- Four 16 mm² cable lugs matched to the equipment studs
- 70 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
