Orion 24/12-70 (840W)
Non-isolated 24→12V converter, 70A (840W). Output factory-set 13.2V, adjustable 10–15V.
Open in Crimp →

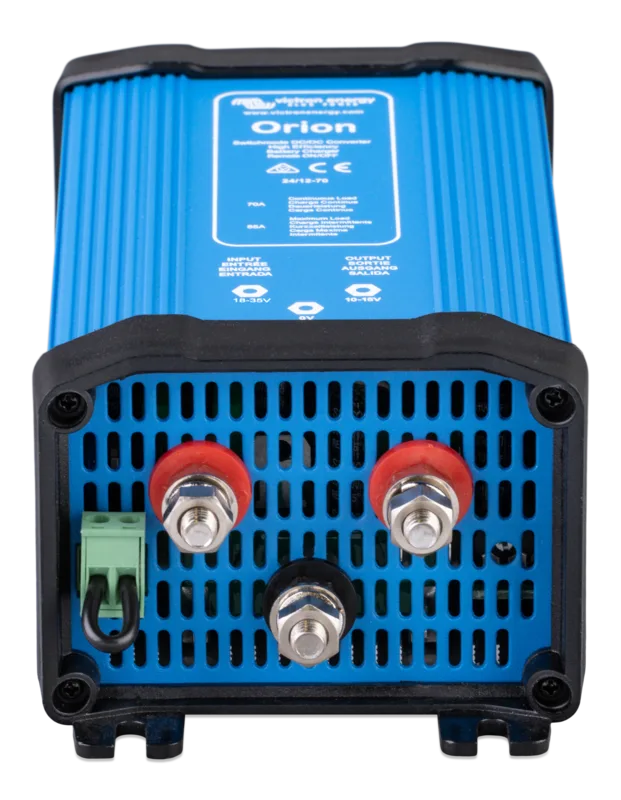

Victron Orion 24/12-70 · 4 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor25 mm²4 AWG
Fuse100 Apositive run
Voltage drop2.5%3 m one way
Design current70 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Compatible systems
- 12 V / 24 V
- Rated output
- 70 A
- Canvas footprint
- 200 × 110 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| IN + | positive | input | 50 A |
| IN − | negative | input | 50 A |
| OUT + | positive | output | 85 A |
| OUT − | negative | output | 85 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 25 mm² (4 AWG) marine cable
- Four 25 mm² cable lugs matched to the equipment studs
- 100 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
