CrimpComponent folio · Distribution · Blue Sea Systems
6011
Dual-circuit selector for two battery banks.
Open in Crimp →

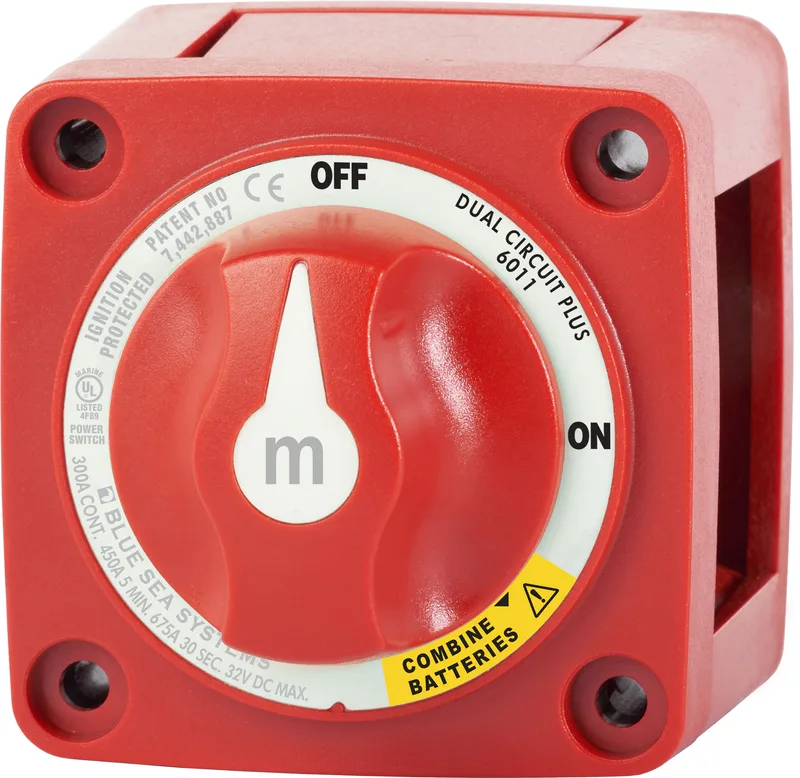

Blue Sea 6011 Dual Circuit Plus · 4 terminals
01 — Reference run
A sizing result with its assumptions attached.
This part has no positive current-carrying terminal for a standalone cable reference. Use the terminal map and complete-system fit check rather than fabricating a feed.
02 — Catalog specification
The part the engine actually sees.
- Canvas footprint
- 200 × 115 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| 1 | neutral | input | 300 A |
| 2 | neutral | input | 300 A |
| C1 | neutral | output | 300 A |
| C2 | neutral | output | 300 A |
03 — Supporting parts
What belongs around it.
- Terminations matched to each catalog terminal
- Strain relief and terminal protection for the installation
- Connection hardware selected from the complete system topology
See what it changes in your system
With JavaScript enabled, describe your existing boat, van, or off-grid system here. The model supplies topology; Crimp's engine computes the attachment, resized runs, checks, and supporting basket.
