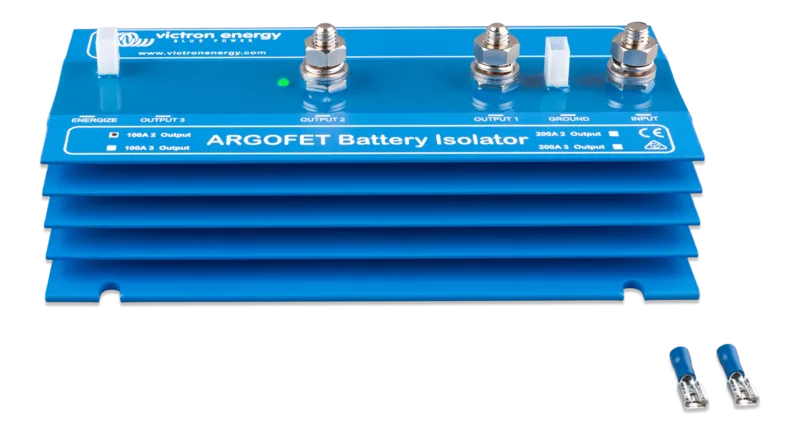

Argofet 100-2
FET-based battery isolator: one alternator input, two isolated outputs to charge two banks independently. 100A per output, very low voltage drop (~0.02V).
Open in Crimp →
Victron Argofet 100-2 · 3 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor35 mm²2 AWG
Fuse125 Apositive run
Voltage drop2.5%3 m one way
Design current100 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Canvas footprint
- 200 × 120 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| ALT | positive | input | 100 A |
| OUT 1 | positive | output | 100 A |
| OUT 2 | positive | output | 100 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 35 mm² (2 AWG) marine cable
- Four 35 mm² cable lugs matched to the equipment studs
- 125 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
