BatteryProtect 220

Victron BatteryProtect 220 is a distribution in Crimp's component catalog.

Open in Crimp →

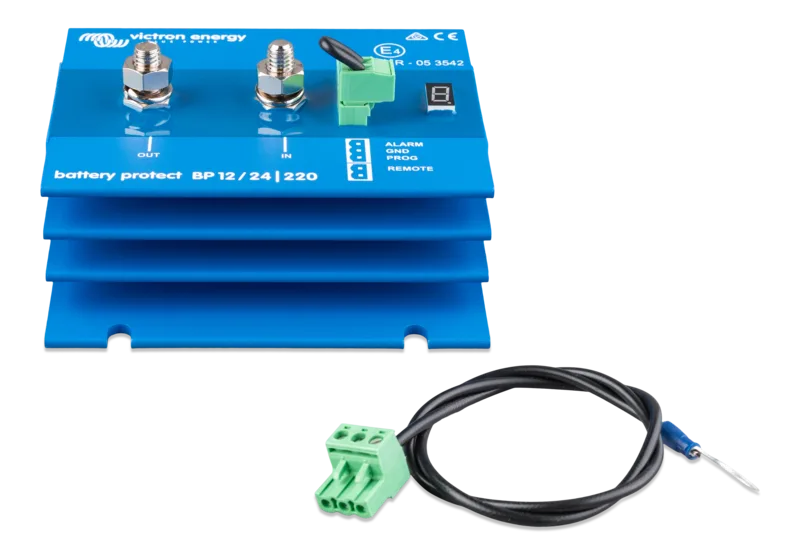

Victron BatteryProtect 220
Victron BatteryProtect 220 · 2 terminals
01 — Reference run

A sizing result with its assumptions attached.

This part has no positive current-carrying terminal for a standalone cable reference. Use the terminal map and complete-system fit check rather than fabricating a feed.

02 — Catalog specification

The part the engine actually sees.

Canvas footprint
200 × 105 px

Terminal map

TerminalPolarityDirectionRating
INneutralinput220 A
OUTneutraloutput220 A
03 — Supporting parts

What belongs around it.

  • Terminations matched to each catalog terminal
  • Strain relief and terminal protection for the installation
  • Connection hardware selected from the complete system topology

See what it changes in your system

With JavaScript enabled, describe your existing boat, van, or off-grid system here. The model supplies topology; Crimp's engine computes the attachment, resized runs, checks, and supporting basket.
