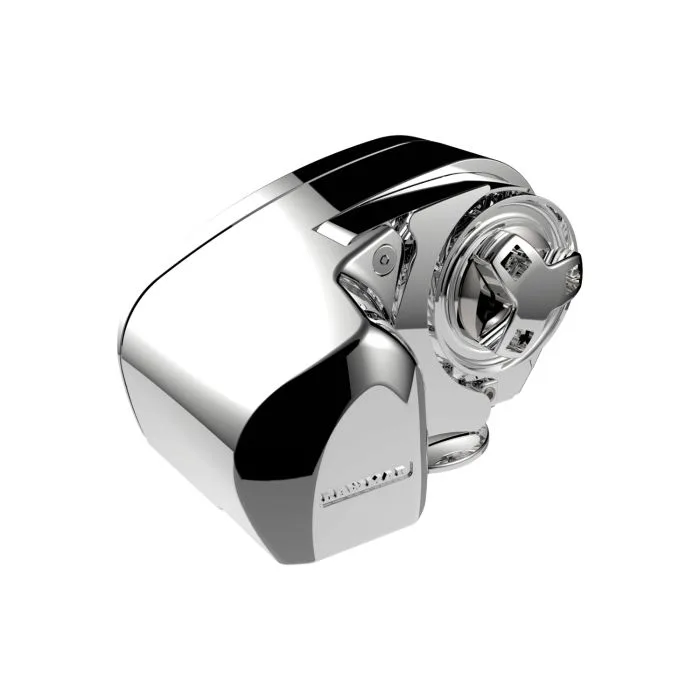

Mid-size windlass, 700W motor. Pull rating ~454 kg (1000 lb).
Open in Crimp →
Lewmar 1000 Windlass · 2 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor70 mm²2/0 AWG
Fuse200 Apositive run
Voltage drop0.6%3 m one way
Design current50 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Compatible systems
- 12 V
- Rated power
- 700 W
- Continuous draw
- 50 A
- Surge current
- 150 A
- Canvas footprint
- 220 × 115 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | input | 160 A |
| − | negative | input | 160 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 70 mm² (2/0 AWG) marine cable
- Four 70 mm² cable lugs matched to the equipment studs
- 200 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
