ZEN 50
12V watermaker with energy-recovery system. 50 L/h fresh-water production at ~240 W (~20 A @ 12 V).
Open in Crimp →

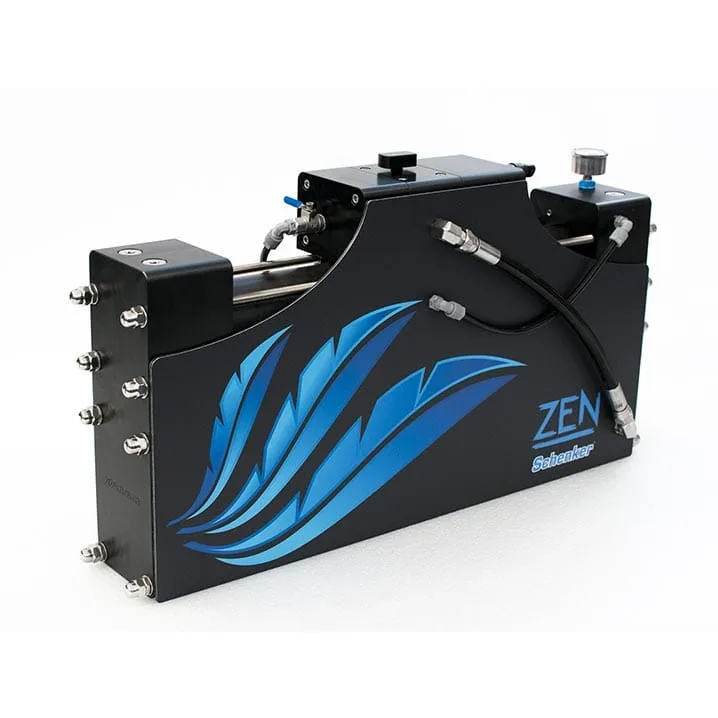

Schenker ZEN 50 Watermaker · 2 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor6 mm²10 AWG
Fuse40 Apositive run
Voltage drop2.9%3 m one way
Design current20 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Compatible systems
- 12 V
- Continuous draw
- 20 A
- Surge current
- 30 A
- Canvas footprint
- 220 × 110 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | input | 30 A |
| − | negative | input | 30 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 6 mm² (10 AWG) marine cable
- Four 6 mm² cable lugs matched to the equipment studs
- 40 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
