BMV-700

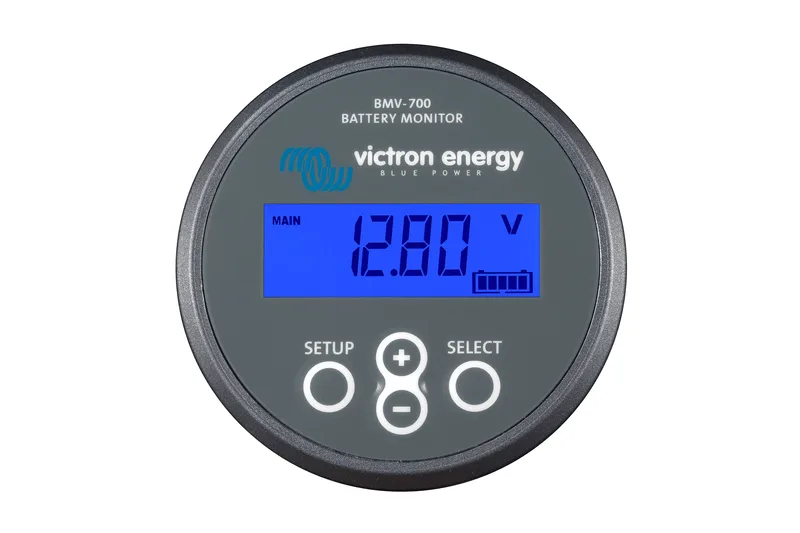

Battery monitor with 500A shunt. Single-bank, no Bluetooth (legacy model).
Open in Crimp →
Victron BMV-700 · 3 terminals
01 — Reference run
A sizing result with its assumptions attached.
This part has no positive current-carrying terminal for a standalone cable reference. Use the terminal map and complete-system fit check rather than fabricating a feed.
02 — Catalog specification
The part the engine actually sees.
- Canvas footprint
- 100 × 60 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| BATT − | negative | input | 500 A |
| LOAD − | negative | output | 500 A |
| B+ sense | signal | bidi | 1 A |
