Voyager 10A

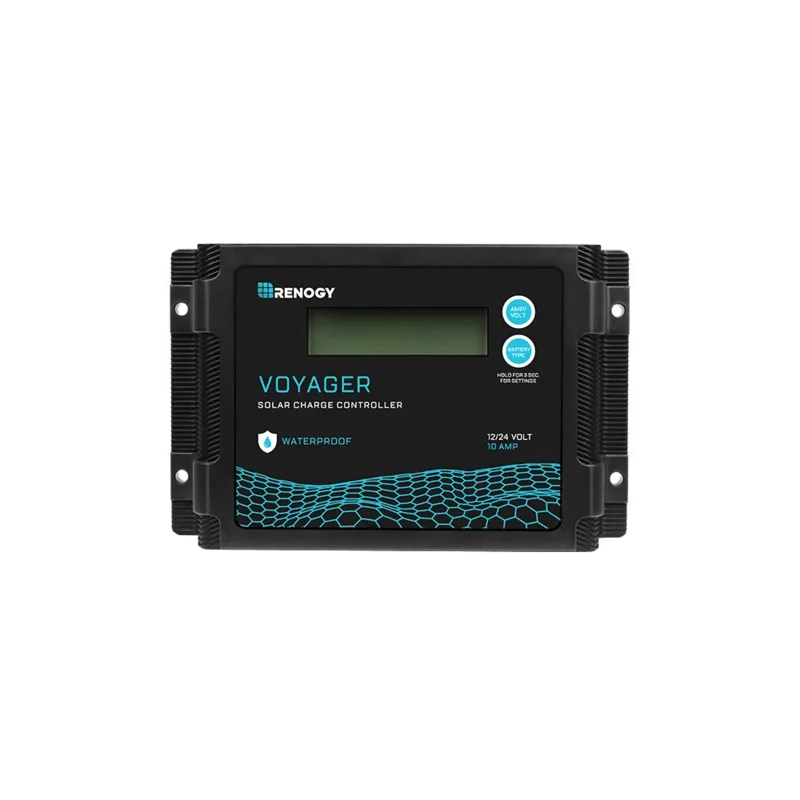

10A PWM controller in a waterproof (IP67) enclosure — for deck-mount or exposed installs.
Open in Crimp →
Renogy Voyager 10A · 4 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor4 mm²11 AWG
Fuse15 Apositive run
Voltage drop2.2%3 m one way
Design current10 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Compatible systems
- 12 V / 24 V
- Rated output
- 10 A
- Typical charge current
- 10 A
- PV open-circuit limit
- 55 V
- Canvas footprint
- 175 × 100 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| PV + | positive | input | 15 A |
| PV − | negative | input | 15 A |
| BATT + | positive | output | 10 A |
| BATT − | negative | output | 10 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 4 mm² (11 AWG) marine cable
- Four 4 mm² cable lugs matched to the equipment studs
- 15 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
