Blue Smart IP22 12/15-1
12V/15A AC battery charger with one output. Bluetooth built-in; 180–265 VAC input.
Open in Crimp →

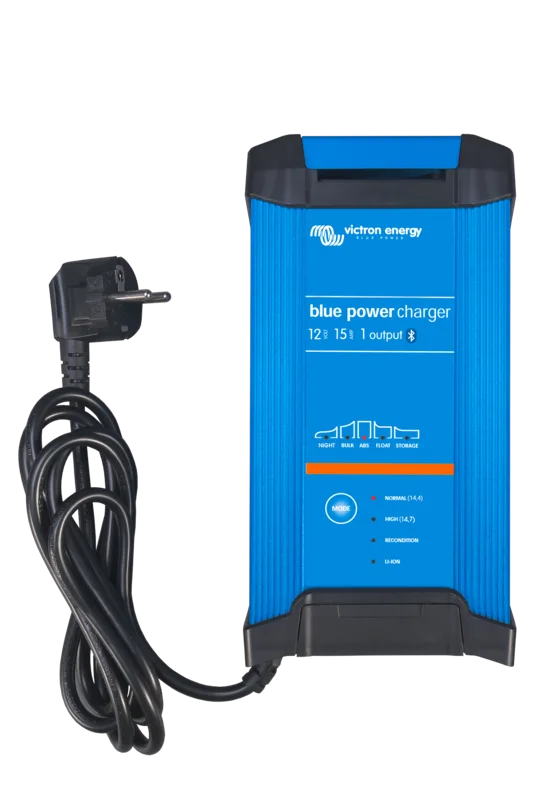

Victron Blue Smart IP22 12/15 (1) · 5 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor6 mm²10 AWG
Fuse20 Apositive run
Voltage drop2.2%3 m one way
Design current15 A12 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Rated output
- 15 A
- Typical charge current
- 14 A
- Canvas footprint
- 210 × 120 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| AC L | neutral | input | 5 A |
| AC N | neutral | input | 5 A |
| AC ⏚ | ground | bidi | 5 A |
| BATT + | positive | output | 15 A |
| BATT − | negative | output | 15 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 6 mm² (10 AWG) marine cable
- Four 6 mm² cable lugs matched to the equipment studs
- 20 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
