CrimpComponent folio · Solar · Renogy
RSP200D

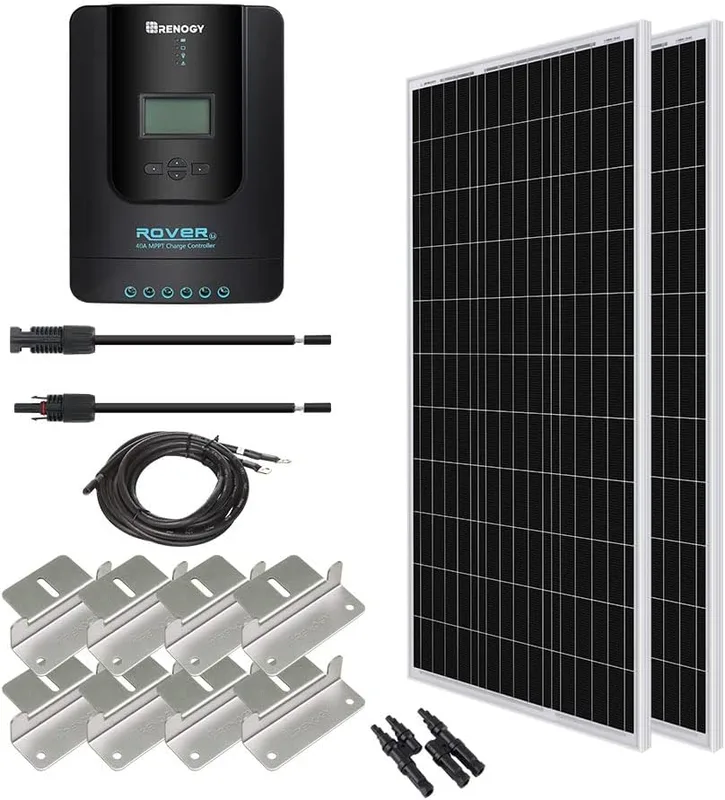

Renogy 200W Mono is a solar in Crimp's component catalog.
Open in Crimp →
Renogy 200W Mono · 2 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor1.5 mm²16 AWG
Fuse15 Apositive run
Voltage drop2.7%3 m one way
Design current8.8 A22.6 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Nominal voltage
- 23 V
- Rated power
- 200 W
- Rated output
- 8.9 A
- Panel open-circuit voltage
- 27 V
- Canvas footprint
- 200 × 110 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | bidi | 15 A |
| − | negative | bidi | 15 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 1.5 mm² (16 AWG) marine cable
- Four 1.5 mm² cable lugs matched to the equipment studs
- 15 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
