RSP550E

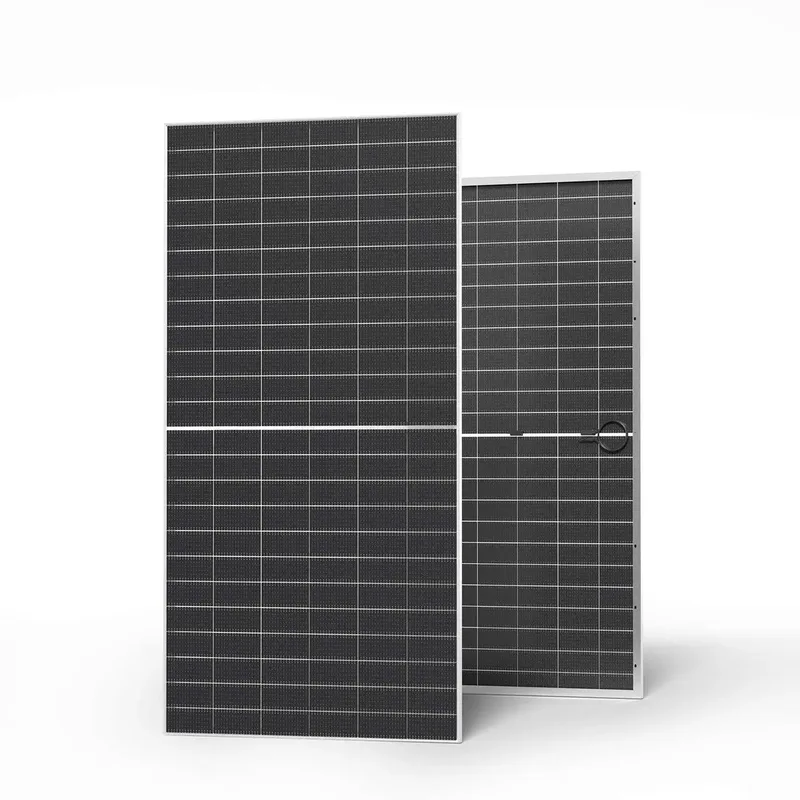

550W rigid mono panel, large format for ground arrays or large rooftops.
Open in Crimp →
Renogy 550W Mono · 2 terminals
01 — Reference run
A sizing result with its assumptions attached.
Conductor2.5 mm²13 AWG
Fuse20 Apositive run
Voltage drop1.3%3 m one way
Design current13 A41.97 V system
The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.
02 — Catalog specification
The part the engine actually sees.
- Nominal voltage
- 42 V
- Rated power
- 550 W
- Rated output
- 13 A
- Panel open-circuit voltage
- 50 V
- Canvas footprint
- 250 × 135 px
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | bidi | 20 A |
| − | negative | bidi | 20 A |
03 — Supporting parts
What belongs around it.
- 6 m total of 2.5 mm² (13 AWG) marine cable
- Four 2.5 mm² cable lugs matched to the equipment studs
- 20 A fuse and holder on the positive run
- Heat-shrink, strain relief, and terminal boots sized to the cable
