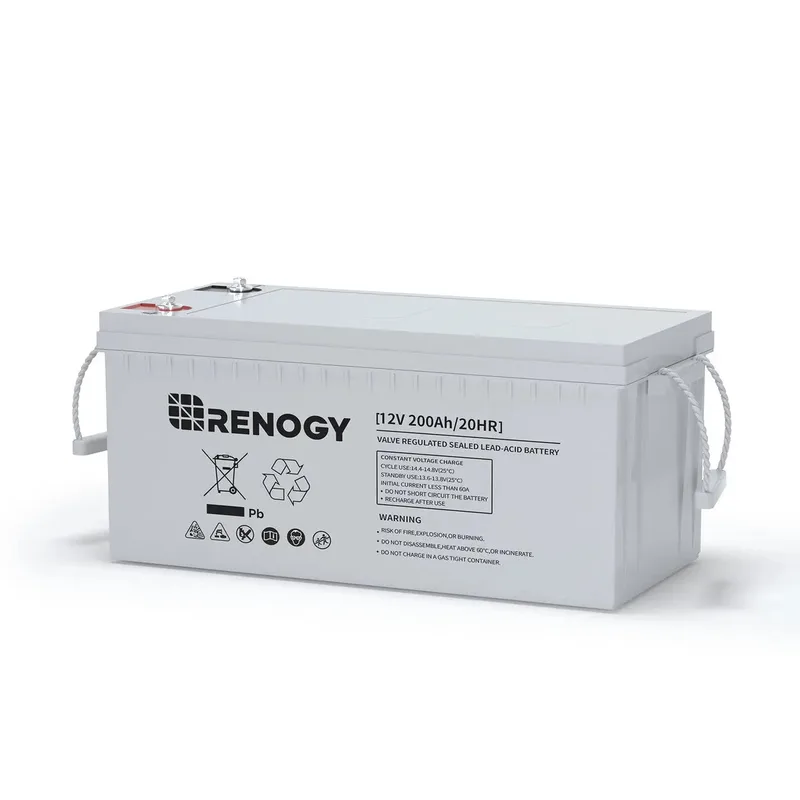

CrimpRenogy 200Ah AGM Deep Cycle
12V 200Ah AGM deep-cycle house battery.
Open in Crimp →
How the 200Ah AGM is wired
The run drawn here is the reference topology for this part. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.
What size cable and fuse does the 200Ah AGM need?
There is no standalone feed to size here: this part either has no positive current-carrying terminal or declares no continuous draw or rated output of its own, so a lone cable number would really be its terminal rating. Its cables are sized by the circuits they serve — use the terminal map and the complete-system fit check.
Renogy 200Ah AGM Deep Cycle specifications and terminal map
- Nominal voltage
- 12 V
- Capacity
- 200 Ah
- Maximum discharge
- 60 A
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | bidi | 200 A |
| − | negative | bidi | 200 A |
What else you need to wire the 200Ah AGM
- Terminations matched to each catalog terminal
- Strain relief and terminal protection for the installation
- Connection hardware selected from the complete system topology
