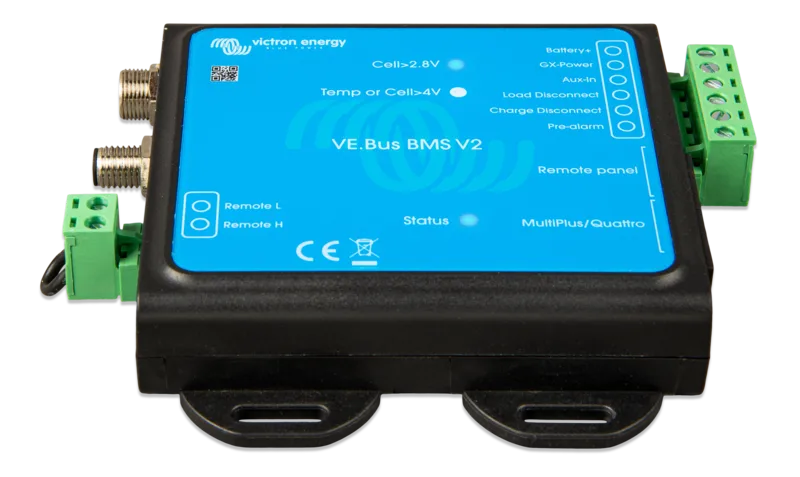

Victron VE.Bus BMS V2

Model VE.Bus BMS V2

BMS for Victron Smart Lithium batteries connected via VE.Bus to a MultiPlus/Quattro. Signal-level only — switches loads and chargers via remote leads, no main current path through the unit.

Open in Crimp →
Victron VE.Bus BMS V2
Victron VE.Bus BMS V2 · 2 terminals
01 — Wiring diagram

How the VE.Bus BMS is wired

Victron VE.Bus BMS V2 wiring diagram WIRING DIAGRAM Victron VE.Bus BMS V2 wiring diagram 12 V battery bank Supplies this load VE.Bus BMS Victron · VE.Bus BMS V2 1 A 1.5 mm² (16 AWG) → + 1.5 mm² (16 AWG) → − 3 m one way crimp.studio 0 A · 0.0% drop · ABYC E-11
Victron VE.Bus BMS V2 wiring diagram, 1.5 mm² (16 AWG) positive feed protected by a 1 A fuse and a matching negative return between the 12 V battery bank and the unit.

The run drawn here is the 3 m reference run sized below. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.

02 — Reference run

What size cable and fuse does the VE.Bus BMS need?

Conductor1.5 mm²16 AWG
Fuse1 Apositive run
Voltage drop0.0%3 m one way
Design current0 A12 V system

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The design current is the part's continuous draw. The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.

03 — Catalog specification

Victron VE.Bus BMS V2 specifications and terminal map

Continuous draw
0 A

Terminal map

TerminalPolarityDirectionRating
+positiveinput1 A
negativeinput1 A
04 — Supporting parts

What else you need to wire the VE.Bus BMS

  • 6 m total of 1.5 mm² (16 AWG) marine cable
  • Four 1.5 mm² cable lugs matched to the equipment studs
  • 1 A fuse and holder on the positive run
  • Heat-shrink, strain relief, and terminal boots sized to the cable

Start from this part

Open the canvas with the VE.Bus BMS already placed, then wire the rest of the system around it. Nothing to install and no sign-up — the project is saved in this browser, and you can download the file whenever you want it.

Open the canvas →

05 — Method & provenance

What is known, assumed, and computed.

Catalog profile

The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.

Engine reference

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.

Read the complete methodology →
