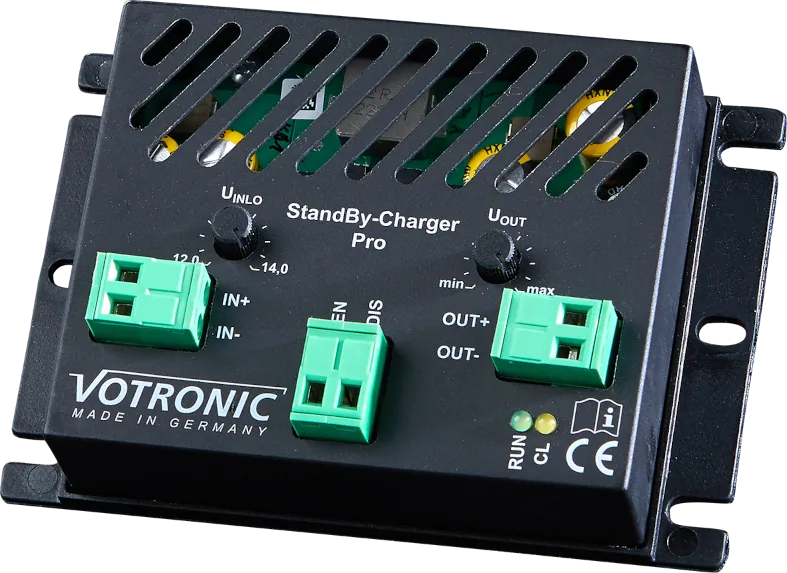

Votronic StandBy-Charger Pro 3063 connections

Review the Votronic StandBy-Charger Pro 3063 connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Compatible systems
12 V
Rated output
8 A

Connection overview

StandBy-Charger Pro 3063 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Votronic StandBy-Charger Pro 3063 connection overview with 1 components: StandBy-Charger Pro 3063. 0 cable connections. Crossings are not junctions.Votronic StandBy-Charger Pro 3063. The StandBy-Charger Pro requires its EN input to be driven as shown in the manual; DIS overrides that permission. Select the output voltage before connecting the destination battery, and include both banks’ protection and the complete enable wiring. A four-power-wire example would omit a required connection. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.StandBy-Charger Pro3063
Votronic StandBy-Charger Pro 3063 connection overview with 1 components: StandBy-Charger Pro 3063. 0 cable connections. Crossings are not junctions.The StandBy-Charger Pro requires its EN input to be driven as shown in the manual; DIS overrides that permission. Select the output voltage before connecting the destination battery, and include both banks’ protection and the complete enable wiring. A four-power-wire example would omit a required connection. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.

Manual PDF 2 specifies 15 A input and 10 A output fuses. 2.5 mm² permits 4.6 m total input and 7 m total output; 1 m each way fits. Set output voltage before connecting destination; EN required, DIS overrides. Manufacturer installation manual

Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. German operating instructions 07/2026, no. 3063), checked 2026-10-01. Manufacturer documentation →

A configurable maintenance charger

StandBy-Charger Pro moves energy from one 12 V battery to another at up to 8 A output, with input draw up to 12 A. Both banks must be nominally 12 V; it is not a 24 V converter. Set the output voltage and input cutoff to suit the actual batteries and their BMS requirements. Its adjustable 12.5–14.5 V output must not be assumed suitable merely because a battery is sold as lithium. See ratings, PDF p. 1.

Connect both power pairs and enable

IN+ and IN− connect to the source bank; OUT+ and OUT− connect to the maintained bank. EN enables charging when supplied with the permitted 12 V control signal, or with the documented IN+-to-EN bridge. DIS overrides EN; connecting the vehicle D+ signal here can stop this charger while the alternator is charging the destination bank. The control terminals do not carry the charging output.

Protect and size each side

The manufacturer's cable table specifies a 15 A input fuse and 10 A output fuse. With 2.5 mm² wire, the maximum combined positive-plus-negative lengths are 4.6 m input and 7 m output. A one-metre positive and one-metre negative run on each side fits both limits. The removable screw terminals accept 1–4 mm² installation cable, stripped 6 mm and tightened to 0.5 Nm. The manual recommends stranded wire without ferrules for these terminals. See wiring and cable table, PDF p. 2 and terminal data, PDF p. 6.

Use the wire size calculator to compare ampacity and voltage drop for each side's current, one-way cable length and installation conditions, then check the result against the manufacturer's limits above. If either bank is LiFePO₄, the LiFePO₄ fuse size calculator helps review that bank's main protection separately from the charger's input and output branch fuses.

Adjust before connecting the destination

Connect the input battery first. Set the input cutoff, enable the device, and adjust output voltage while measuring the unloaded output. Only then connect the output battery. Verify that DIS stops charging and that input undervoltage prevents unwanted discharge of the source bank. Recheck voltage at the destination battery under load; excessive cable drop can leave maintenance charging incomplete. See commissioning, PDF p. 3.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Adjustable 12 V to 12 V maintenance charger, up to 8 A output and 12 A input. Configure cutoff and output voltage for the batteries before enabling it.

Compatible systems
12 V
Rated output
8 A

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

IN +

positive · input

12 A

IN −

negative · input

12 A

OUT +

positive · output

8 A

OUT −

negative · output

8 A

EN

signal · bidi

—

DIS / D+

signal · bidi

—

A dash means a current rating is not specified here.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
