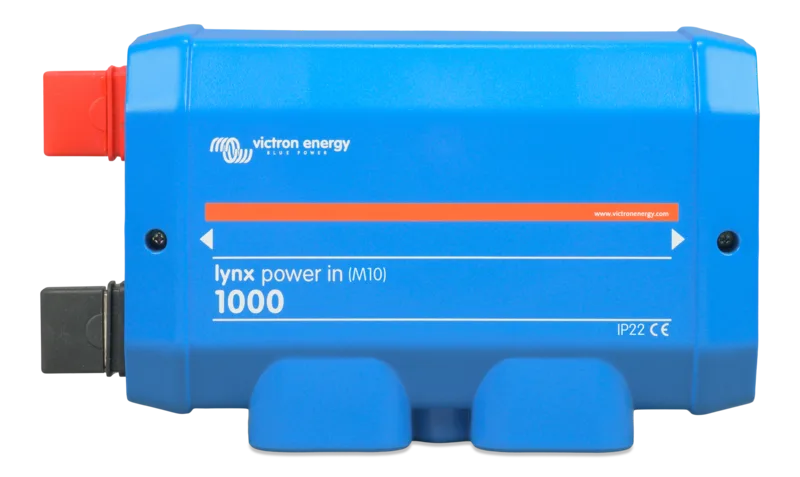

Victron Lynx Power In

Model Lynx Power In

Lynx-bus module with plain positive and negative busbars: four bolt pairs for batteries, loads or chargers, plus a ground connection. No on-board fusing — protect each connection externally. 1000 A continuous (M10 version).

Open in Crimp →
Victron Lynx Power In
Victron Lynx Power In · 8 terminals
01 — Wiring diagram

How the Lynx Pwr In is wired

Victron Lynx Power In wiring diagram WIRING DIAGRAM Victron Lynx Power In wiring diagram System bus Positive and negative rails Lynx Pwr In Victron · Lynx Power In 1+ 1− 3 × positive stud 3 × negative stud crimp.studio Terminal map · no standalone feed to size
Victron Lynx Power In wiring diagram, positive and negative connections between the system bus and the unit, plus 3 × positive stud, 3 × negative stud.

The run drawn here is the reference topology for this part. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.

02 — Reference run

What size cable and fuse does the Lynx Pwr In need?

There is no standalone feed to size here: this part either has no positive current-carrying terminal or declares no continuous draw or rated output of its own, so a lone cable number would really be its terminal rating. Its cables are sized by the circuits they serve — use the terminal map and the complete-system fit check.

03 — Catalog specification

Victron Lynx Power In specifications and terminal map

Terminal map

TerminalPolarityDirectionRating
1+positivebidi250 A
2+positivebidi250 A
1−negativebidi250 A
2−negativebidi250 A
3+positivebidi250 A
4+positivebidi250 A
3−negativebidi250 A
4−negativebidi250 A
04 — Supporting parts

What else you need to wire the Lynx Pwr In

  • Terminations matched to each catalog terminal
  • Strain relief and terminal protection for the installation
  • Connection hardware selected from the complete system topology

Start from this part

Open the canvas with the Lynx Pwr In already placed, then wire the rest of the system around it. Nothing to install and no sign-up — the project is saved in this browser, and you can download the file whenever you want it.

Open the canvas →

05 — Method & provenance

What is known, assumed, and computed.

Catalog profile

The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.

Engine reference

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.
