Victron SmartShunt 300A wiring diagram

300 A/50 mV battery shunt with Bluetooth and a VE.Direct port, no display — the smallest SmartShunt. Reads out through the VictronConnect app or a GX device; supports 6.5–70 V systems.

Units

Wiring diagram

How the SmartShunt 300 is wired.

Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.

Victron SmartShunt 300A wiring example with 5 components: House bank, SmartShunt 300, − Bus, 18 A load, 30 A charger. 7 cable connections. Crossings are not junctions.House bank + to 18 A load +: 6 mm² · 25 A fuse, 3 m one way. 30 A charger + to House bank +: 10 mm² · 40 A fuse, 3 m one way. House bank − to SmartShunt 300 BATT −: 10 mm², 30 cm one way. SmartShunt 300 LOAD − to − Bus −: 10 mm², 30 cm one way. 18 A load − to − Bus 1: 6 mm², 3 m one way. 30 A charger − to − Bus 2: 10 mm², 3 m one way. House bank + to SmartShunt 300 B+ sense: 1 A sense fuse, 1.5 m one wayHouse bank + to 18 A load +: 6 mm² · 25 A fuse, 3 m one way30 A charger + to House bank +: 10 mm² · 40 A fuse, 3 m one wayHouse bank − to SmartShunt 300 BATT −: 10 mm², 30 cm one waySmartShunt 300 LOAD − to − Bus −: 10 mm², 30 cm one way18 A load − to − Bus 1: 6 mm², 3 m one way30 A charger − to − Bus 2: 10 mm², 3 m one wayHouse bank + to SmartShunt 300 B+ sense: 1 A sense fuse, 1.5 m one way12 V 200 Ah house bank. 200 Ah is context only. Replace this placeholder with your actual bank and verify battery-end protection and fault current.House bank++−−Victron SmartShunt 300ASmartShunt 300BATT −BATT −LOAD −LOAD −B+ senseB+ senseNegative Bus Bar. All loads and chargers return here, on SYSTEM MINUS; no return may bypass the shunt.− Bus−1212 V reference load18 A load++−−12 V 30 A charging allowance30 A charger++−−6 mm² · 25 A fuse10 mm² · 40 A fuse10 mm²6 mm²10 mm²1 A sense fuse
Victron SmartShunt 300A wiring example with 5 components: House bank, SmartShunt 300, − Bus, 18 A load, 30 A charger. 7 cable connections. Crossings are not junctions.Red = positive · dark = return · dashed = signal. Wire sizes and fuse ratings are example values; use the equipment instructions and actual installation lengths.
Edit this wiring example

Cable sizing for this example

Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.

Cable sizes depend on the connected equipment, current and cable lengths. Add those details in Crimp to size each run.

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. 19 - 08/2026), checked 2026-10-01. Manufacturer documentation →

Which SmartShunt is covered?

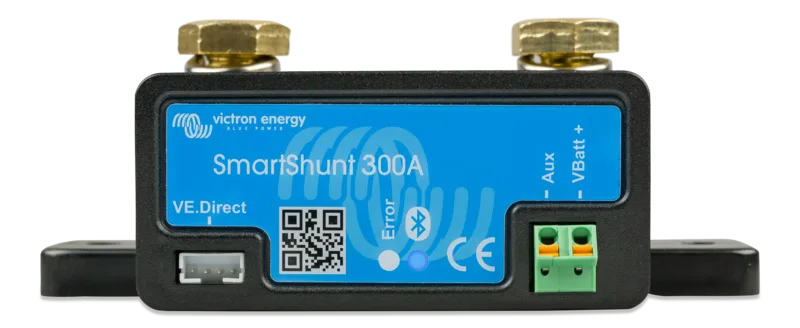

This is the SmartShunt 300A/50mV, IP21. It measures one bank's current and state of charge and communicates through Bluetooth or VE.Direct; it has no display. The IP21 enclosure needs a dry mounting location. The manual's 300 A model measures 44 × 120 × 44 mm and uses M8 main bolts, maximum 10 N·m. Do not copy the smaller model's hardware specification when selecting lugs.

How do the power and return connections work?

Connect bank negative only to BATTERY MINUS. Connect every load and charging return to SYSTEM MINUS, through a common negative bus if needed. Earlier labels say LOAD MINUS. A chassis return connected on the battery side bypasses the measurement just as a directly connected charger does.

The red Vbatt+ lead supplies the electronics and measures voltage. Retain its supplied 1 A slow-blow fuse. The operating range is 6.5–70 V DC. This small fuse does not protect the bank cables, and 300 A is the shunt's measuring range, not a recommended battery fuse. Size the main circuit for its actual continuous and transient current, cable installation and fault protection.

What does Aux measure?

Aux can measure a second battery's voltage, series-bank midpoint voltage, or temperature with the specified sensor. It does not measure a second bank's current. Select one function and use the matching diagram in manual §3.5. The canvas shows the main shunt and voltage lead; Aux and the VE.Direct cable are additional connections.

What must be configured and checked?

Use VictronConnect to set the actual bank capacity, chemistry-related parameters and charged-voltage/tail-current settings. Synchronize to 100% only after the bank is actually full. With all loads and chargers off, check zero current; then switch on a known load and confirm discharge direction. A plausible voltage with missing current usually calls for a return-path check before changing calibration. See manual §§3–5 and the technical table in §11.

Fit check

Connect it to the rest of your system.

Describe your setup to draft a system with SmartShunt 300A connected. Review the selected parts and cable lengths, then edit the diagram in Crimp.

The model only picks parts and draws the connections. Every wire size and fuse rating still comes from Crimp's own sizing, never from the model.

Enable JavaScript to describe your system.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

300 A/50 mV battery shunt with Bluetooth and a VE.Direct port, no display — the smallest SmartShunt. Reads out through the VictronConnect app or a GX device; supports 6.5–70 V systems.

Connection limits are listed in the terminal map. Use the manufacturer's documentation for the full specifications.

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

BATT −

negative · input

300 A

LOAD −

negative · output

300 A

B+ sense

signal · bidi

1 A
Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Example sizing. Wire sizes and fuse ratings apply to the connected example, not a fixed cable size for this component. Set your actual equipment, current, lengths and installation conditions in Crimp before choosing hardware.
