Victron SmartShunt IP65 500A wiring diagram
IP65 SmartShunt 500 A/50 mV with sealed leads, Bluetooth and VE.Direct. 6.5–70 V supply; operating ambient −40 to +50 °C. Select a location within that limit; the IP rating does not permit submersion.
Wiring diagram
How the SS IP65 500 is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
Cable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
Cable sizes depend on the connected equipment, current and cable lengths. Add those details in Crimp to size each run.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. 10 - 08/2026), checked 2026-10-01. Manufacturer documentation →
What differs on the IP65 500 A model?

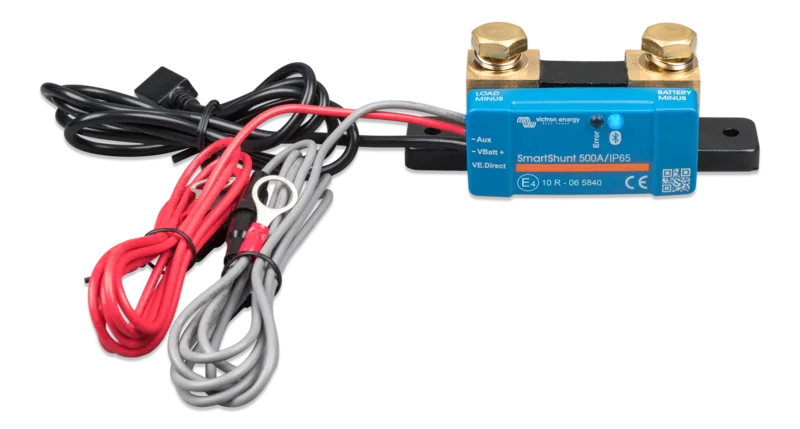

This is the sealed SmartShunt IP65 500A/50mV, with fixed red Vbatt+, grey Aux and black VE.Direct leads. Use its separate IP65 manual; the IP21 model's push-in terminal procedure does not apply. It uses M10 main bolts, tightened to a maximum 21 N·m, and operates from 6.5–70 V DC.
IP65 does not mean submersible. The published ambient range is −40 to +50 °C, so an engine compartment must remain within that limit. Mount the shunt securely and support the heavy cables so their weight does not strain it.
How is it connected?
Connect battery negative to BATTERY MINUS with no other load or charging returns on that side. Put the negative distribution bus on LOAD MINUS and connect every charger, inverter and load return there. The red fused eyelet goes to bank positive; keep the supplied 1 A slow-blow fuse. Main-cable protection is a separate installation decision.
The grey Aux lead can monitor one additional quantity: another battery's voltage, the midpoint of a series bank, or temperature using the correct sensor wiring. For a second battery, the manual requires its negative on the load side of the shunt. Aux does not provide a second current measurement. See §§3.3–3.5 before connecting or modifying these fixed leads.
How is commissioning completed?
Pair in VictronConnect, configure bank capacity and charging parameters, and choose the Aux function actually wired. Verify current direction with a known load and charge source. Synchronize state of charge after a confirmed full charge; a displayed 100% immediately after setup is not evidence of battery capacity.
If current is missing, look for a negative lead bypassing the shunt. If Bluetooth range is poor, first test close to the unit; the large conductors and surrounding metal can reduce range. VE.Direct provides a wired route to a compatible GX device. The canvas omits that data cable and the Aux circuit.
Fit check
Connect it to the rest of your system.
Describe your setup to draft a system with SmartShunt IP65 500A connected. Review the selected parts and cable lengths, then edit the diagram in Crimp.
The model only picks parts and draws the connections. Every wire size and fuse rating still comes from Crimp's own sizing, never from the model.
Enable JavaScript to describe your system.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
IP65 SmartShunt 500 A/50 mV with sealed leads, Bluetooth and VE.Direct. 6.5–70 V supply; operating ambient −40 to +50 °C. Select a location within that limit; the IP rating does not permit submersion.
Connection limits are listed in the terminal map. Use the manufacturer's documentation for the full specifications.
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
BATT −
negative · input
LOAD −
negative · output
B+ sense
signal · bidi
