Victron GX Touch 70 connections

Name: Victron GX Touch 70
Brand: Victron

Review the Victron GX Touch 70 connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

View connections Edit this connection overview

Units

Connection overview

GX Touch 70 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Victron GX Touch 70 connection overview with 3 components: GX Touch 70, 12 V House battery, Cerbo GX. 2 cable connections. Crossings are not junctions.A Cerbo GX powers and drives this display through HDMI and USB. The display has no standalone DC terminals, and its host/display cable is not represented by the catalog symbols. Include display consumption in the Cerbo supply budget. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.

Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. Undated manufacturer datasheet; accessed 2026-10-01), checked 2026-10-01. Manufacturer documentation →

What does the GX Touch 70 connect to?

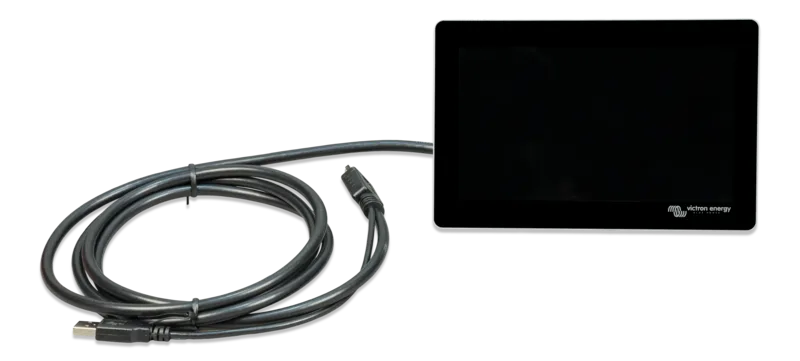

The 7-inch GX Touch 70 is a display accessory for a compatible Cerbo GX host. It has no independent battery-monitoring electronics, DC screw terminals or direct 12 V feed. Connect the attached cable's HDMI plug for video and USB plug for power to the host as shown in its installation manual. USB alone does not provide the display image.

Crimp therefore shows this accessory without battery terminals. Do not connect battery voltage to either plug or add the former schematic's positive/negative battery leads. The host's DC supply belongs in the electrical plan; the display connection is additional equipment wiring.

Which mounting version is covered?

This is the standard GX Touch 70, measuring 113 × 176 × 13.5 mm, with 1024 × 600 resolution and a 2 m cable. The separate Flush version has different dimensions, mounting parts and sealing provisions. Use the drawing for the version on the label before cutting a panel.

The standard display is IP54 excluding its connectors. Keep the HDMI/USB connections protected and provide strain relief. Route the cable before fixing the display so it reaches the host without tension. The datasheet distinguishes the standard top/wall mounting arrangement from the Flush model.

How is power consumption budgeted?

The downloaded Cerbo/GX Touch datasheet gives 2.8 W at 12 V for the host alone, and 3.8–4.8 W at 12 V with a GX Touch, depending on backlight state. Those are combined-system figures. They are not a separate display fuse rating or evidence of a direct battery supply. Other host generations and USB accessories can change the total; use the host's own manual and budget attached equipment too.

What should be checked if the screen is blank?

Confirm the Cerbo is powered, both plugs are seated, and the USB connection is a powered port supported by that host. Then check the host's display settings and software. A blank screen does not prove that the battery monitor or charger has lost power; those devices communicate with the Cerbo separately.

Fit check

Connect it to the rest of your system.

Describe your setup to draft a system with GX Touch 70 connected. Review the selected parts and cable lengths, then edit the diagram in Crimp.

The model only picks parts and draws the connections. Every wire size and fuse rating still comes from Crimp's own sizing, never from the model.

Enable JavaScript to describe your system.

Technical reference

Specifications and connections.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

7" touchscreen display for Cerbo GX. Connects to the host with HDMI and USB; no direct battery power terminals. Budget its consumption at the Cerbo supply.

Use the manufacturer's complete diagram to select conductors, protection and control wiring.

Connection details

This overview symbol has no editable power terminals. Use the manufacturer’s connection diagram for the leads, control wiring and physical layout.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
