Victron MultiPlus-II 48/5000

Model MultiPlus-II 48/5000/70-50

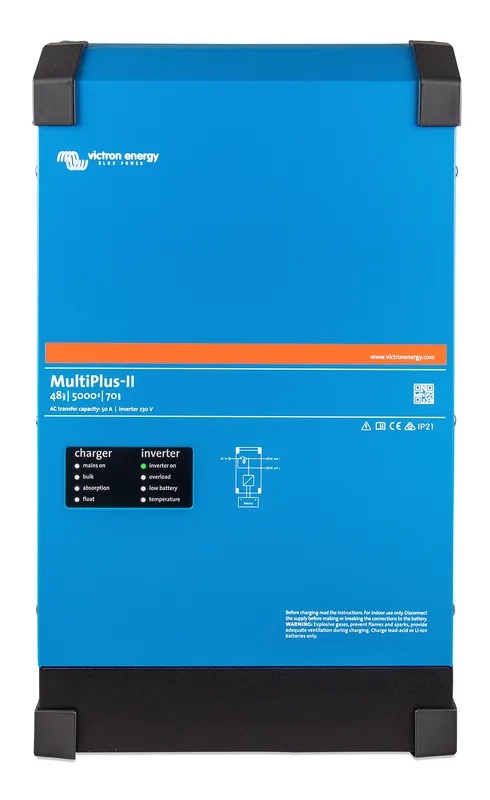

5000 VA inverter/charger, 70 A charge at 48 V, transfer switch + PowerAssist. The standard combo unit on a 48 V Victron install (Pylontech / BYD bank, AC coupled solar). 48 V banks only.

Open in Crimp →
Victron MultiPlus-II 48/5000
Victron MultiPlus-II 48/5000 · 6 terminals
01 — Wiring diagram

How the MultiPlus-II 48/5000 is wired

Victron MultiPlus-II 48/5000 wiring diagram WIRING DIAGRAM Victron MultiPlus-II 48/5000 wiring diagram 48 V battery bank Supplies this load MultiPlus-II 48/5000 Victron · MultiPlus-II 48/500… 250 A 95 mm² (3/0 AWG) → DC + 95 mm² (3/0 AWG) → DC − 3 m one way AC IN L AC IN N AC OUT L AC OUT N crimp.studio 100 A · 0.2% drop · ABYC E-11
Victron MultiPlus-II 48/5000 wiring diagram, 95 mm² (3/0 AWG) positive feed protected by a 250 A fuse and a matching negative return between the 48 V battery bank and the unit, plus AC IN L, AC IN N, AC OUT L, AC OUT N.

The run drawn here is the 3 m reference run sized below. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.

02 — Reference run

What size cable and fuse does the MultiPlus-II 48/5000 need?

Conductor95 mm²3/0 AWG
Fuse250 Apositive run
Voltage drop0.2%3 m one way
Design current100 A48 V system

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The design current is the part's continuous draw. The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.

03 — Catalog specification

Victron MultiPlus-II 48/5000 specifications and terminal map

Compatible systems
48 V
Rated power
4,000 W
Continuous draw
100 A
Rated output
70 A
Surge current
200 A

Terminal map

TerminalPolarityDirectionRating
AC IN Lneutralinput50 A
AC IN Nneutralinput50 A
DC +positiveinput200 A
DC −negativeinput200 A
AC OUT Lneutraloutput25 A
AC OUT Nneutraloutput25 A
04 — Supporting parts

What else you need to wire the MultiPlus-II 48/5000

  • 6 m total of 95 mm² (3/0 AWG) marine cable
  • Four 95 mm² cable lugs matched to the equipment studs
  • 250 A fuse and holder on the positive run
  • Heat-shrink, strain relief, and terminal boots sized to the cable

Start from this part

Open the canvas with the MultiPlus-II 48/5000 already placed, then wire the rest of the system around it. Nothing to install and no sign-up — the project is saved in this browser, and you can download the file whenever you want it.

Open the canvas →

05 — Method & provenance

What is known, assumed, and computed.

Catalog profile

The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.

Engine reference

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.

Read the complete methodology →
