BlueSolar 115W-12V

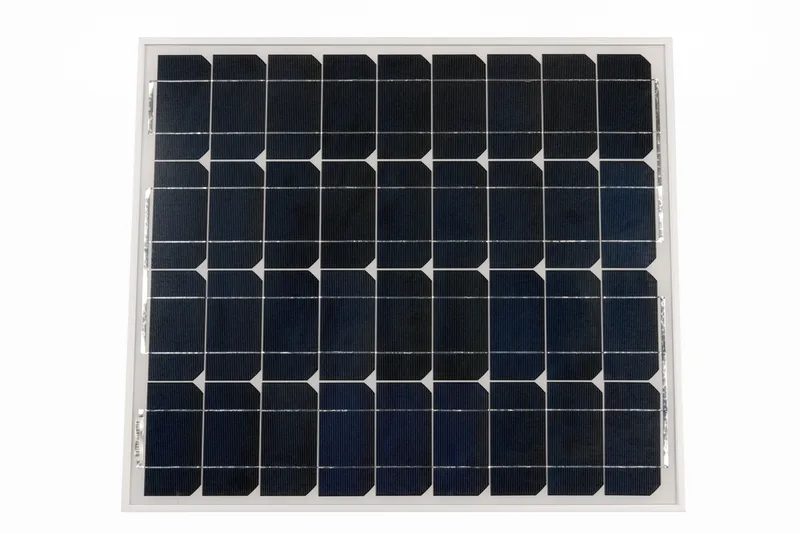

Victron 115W Mono

115W rigid mono panel, 12V nominal (Vmp 19.0V, Voc 23.3V) — works with PWM or MPPT controllers. About 8kg, MC4 connectors.

The reference run on this page is 3 m one way, sized against ABYC E-11. Your own run will differ, and the canvas sizes that one.

Wiring diagram

How the 115W Mono is wired.

The drawing shows where the feed, the return and the fuse land on this part. The starter uses the same reference circuit and sizing assumptions. Read the installation notes for manufacturer requirements before adapting the runs.

Victron 115W Mono wiring diagram, 1.5 mm² (16 AWG) positive feed protected by a 10 A fuse and a matching negative return between the 19 V battery bank and the unit.
Open starter in Crimp

Build it out

Build the system it goes in.

Open the canvas with BlueSolar 115W-12V already placed, then add your batteries, charging, distribution and loads around it.

Every cable you draw there is sized against ABYC E-11, from the same tables as the reference on this page.

Technical reference

Specs, terminals and the parts around them.

The catalog facts for this part, which terminal takes what, and the hardware you'll want around it. Check the nameplate on your own unit before you order.

Catalog specification

Nominal voltage
19 V
Rated power
115 W
Rated output
6 A
Panel open-circuit voltage
23.3 V

3 m reference run

19 V panel Vmp

Wire
1.5 mm² · 16 AWG
Fuse
10 A
Design current
6.0 A
Voltage drop
2.3%

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The design current is the part's continuous draw. The length is one way; voltage drop includes an equal-length return. The shared starter uses 3.048 m (10 ft) runs unless a shorter run is stated. These are example assumptions for you to adapt to your own installation.

Supporting parts

  1. 6 m total of 1.5 mm² (16 AWG) marine cable
  2. Terminations for 1.5 mm² cable, matched to the equipment's screw terminals, leads or studs
  3. 10 A fuse and holder on the positive run
  4. Heat-shrink, strain relief and terminal boots sized to the cable

Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

+

pos

positive · bidi

12 A

neg

negative · bidi

12 A

Method & provenance

What is known, assumed and computed.

The manufacturer publishes some of these numbers and Crimp works out the rest. It's worth knowing which is which.

From the maker

What the catalog says

Manufacturer, model, ratings and which terminal does what come from the catalog. A newer revision, or the nameplate on the unit in your hand, can say something different — when it does, the nameplate wins.

ABYC E-11

What Crimp worked out

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The run length and the current above are what drive the result. Crimp doesn't know how warm your space gets; draw the cable inside an engine-bay zone on the canvas and it sizes for the heat.
