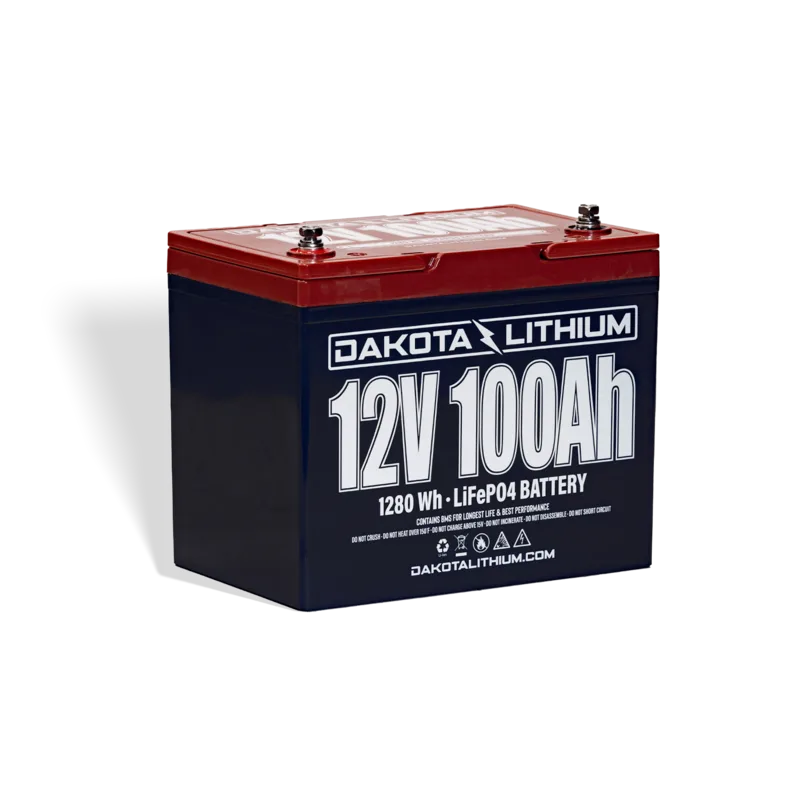

CrimpDakota Lithium 100Ah
12V 100Ah LiFePO4 with internal BMS. 100A continuous discharge, 200A ten-second pulse; charge at up to 50A.
Open in Crimp →
A sizing result with its assumptions attached.
There is no standalone feed to size here: this part either has no positive current-carrying terminal or declares no continuous draw or rated output of its own, so a lone cable number would really be its terminal rating. Its cables are sized by the circuits they serve — use the terminal map and the complete-system fit check.
The part the engine actually sees.
- Nominal voltage
- 13 V
- Capacity
- 100 Ah
- Maximum discharge
- 100 A
Terminal map
| Terminal | Polarity | Direction | Rating |
|---|---|---|---|
| + | positive | bidi | 200 A |
| − | negative | bidi | 200 A |
What belongs around it.
- Terminations matched to each catalog terminal
- Strain relief and terminal protection for the installation
- Connection hardware selected from the complete system topology
See what it changes in your system
With JavaScript enabled, describe your existing boat, van, or off-grid system here. The model supplies topology; Crimp's engine computes the attachment, resized runs, checks, and supporting basket.
What is known, assumed, and computed.
Catalog profile
The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.
Engine reference
Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.
Read the complete methodology →
