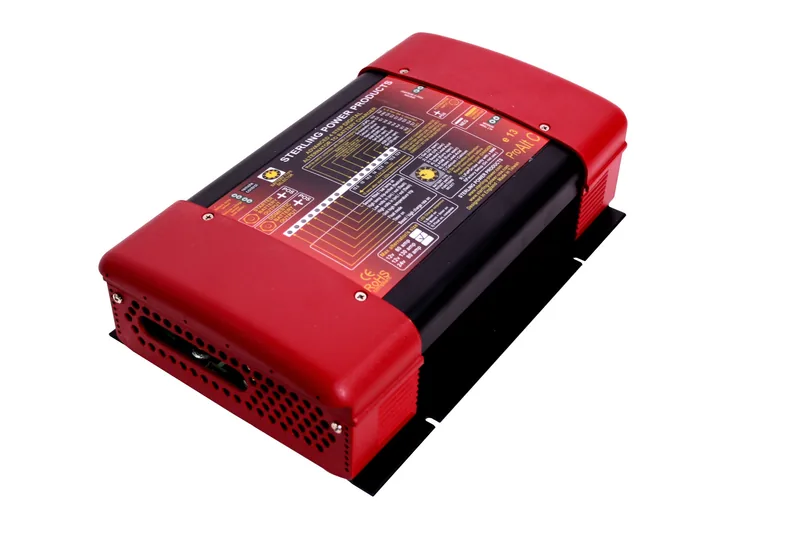

Sterling Pro Alt C AB1280 connections

Review the Sterling Pro Alt C AB1280 connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Compatible systems
12 V

Connection overview

AB1280 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Sterling Pro Alt C AB1280 connection overview with 1 components: AB1280. 0 cable connections. Crossings are not junctions.Sterling Pro Alt C AB1280. Direct alternator input plus separate domestic/starter outputs, excitation/sensors and installer-selected protection require alternator-specific topology; no sourced fixed output current. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.AB1280
Sterling Pro Alt C AB1280 connection overview with 1 components: AB1280. 0 cable connections. Crossings are not junctions.Direct alternator input plus separate domestic/starter outputs, excitation/sensors and installer-selected protection require alternator-specific topology; no sourced fixed output current. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.
Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. Manufacturer-linked AB80–130 family installation manual), checked 2026-10-01. Manufacturer documentation →

Understand the 80 A designation

AB1280 accepts a 12 V alternator system rated up to 80 A, with a boosted domestic-bank output and a separate starter-bank output. That 80 A is the permitted alternator rating, not a guaranteed 80 A delivered to the domestic battery. Output depends on alternator capability, temperature, wiring and charging stage. The manufacturer product guidance warns against lithium use without external current limiting: this charger is not itself a current limiter.

Trace alternator and battery terminals

Route alternator B+ to the alternator input, starter positive to the starter output, and domestic positive to the domestic output. They are not three posts of a battery combiner. Connect the charger's negative reference to the common negative/alternator negative as instructed; the manual calls for cable suitable for 60 A for this connection. An alternator with external voltage sensing may require moving its sense connection back to alternator B+. See installation instructions, PDF p. 2.

Sensors and protection

Fit the battery temperature sensor to the specified negative battery terminal and the alternator sensor to its case or negative connection. Never put those sensor lugs on a positive terminal. The domestic voltage-sense lead is a separate circuit. Protect battery-fed conductors according to their sizes and the actual alternator installation; this manual does not supply a universal AB1280 fuse value. A fuse opening in an operating alternator circuit also needs consideration in the installation design. See sensor and fuse guidance, PDF p. 3.

Commission with the actual alternator

Select the domestic battery profile before charging. Check engine-off isolation, excitation at startup, both battery voltages and alternator temperature during sustained charging. Some installations require the ignition/excitation connection because the alternator otherwise cannot start producing voltage. The catalog intentionally leaves predicted output current blank until an operating point and safe alternator limit have been established.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

12 V alternator-to-battery charger for an alternator rated up to 80 A. The alternator rating is not guaranteed boosted battery output; lithium requires external current limiting.

Compatible systems
12 V

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

ALTERNATOR IN +

positive · input

80 A

DOMESTIC +

positive · output

—

STARTER +

positive · output

—

COMMON −

negative · input

—

IGNITION

signal · bidi

—

DOMESTIC SENSE

signal · bidi

—

BATTERY TEMP

signal · bidi

—

ALTERNATOR TEMP

signal · bidi

—

REMOTE

signal · bidi

—

A dash means a current rating is not specified here.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
