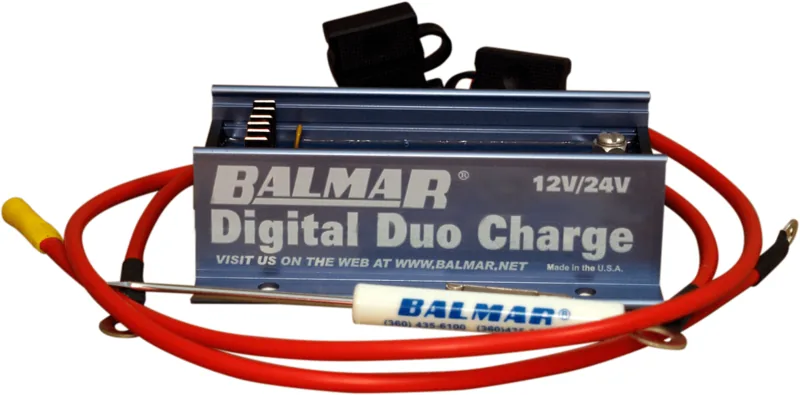

Balmar Digital Duo Charge DDC-12/24 connections

Review the Balmar Digital Duo Charge DDC-12/24 connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Compatible systems
12 V / 24 V
Rated output
30 A

Connection overview

DDC-12/24 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Balmar Digital Duo Charge DDC-12/24 connection overview with 1 components: DDC-12/24. 0 cable connections. Crossings are not junctions.Balmar Digital Duo Charge DDC-12/24. Three-terminal power/reference arrangement, mandatory enable, deliberately short supplied input and >=8 ft output extension need exact common-negative starter-bank diagram; generic four-wire converter example is misleading. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.DDC-12/24
Balmar Digital Duo Charge DDC-12/24 connection overview with 1 components: DDC-12/24. 0 cable connections. Crossings are not junctions.Three-terminal power/reference arrangement, mandatory enable, deliberately short supplied input and >=8 ft output extension need exact common-negative starter-bank diagram; generic four-wire converter example is misleading. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.
Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. SUP-0202 Rev B, 12 May 2017), checked 2026-10-01. Manufacturer documentation →

Maintain the starter battery from the house bank

Digital Duo Charge transfers up to 30 A from a charging house bank to the starter bank. Its four output profiles cover flooded, deep-cycle, gel and AGM batteries; the manual does not establish a lithium starter-bank profile. Configure 12 V or 24 V operation to match both banks. With the enable lead permanently supplied, charging begins when input exceeds 13 V in a 12 V system or 26 V in a 24 V system. See enable wiring, PDF p. 3.

Four essential connections

Connect the fused input lead to house positive and fused output lead to starter positive. Both banks require a shared negative system. The separate 14 AWG ground wire is the controller reference, not a replacement for the starter bank's heavy negative cable. The ON/OFF lead also needs the chosen enable supply; installing only the large positive cables will not commission the charger.

Keep the supplied cable arrangement

Both supplied positive leads contain 30 A fuses and use 10 AWG cable. Balmar calls for a short input lead and recommends at least eight feet (2.44 m) of output extension to the starter battery. The manual deliberately uses that wiring arrangement for its dynamic response; shortening everything for appearance changes the specified installation. Mount dry, within reach of the supplied input lead, with the status LEDs visible. See cable instructions, PDF p. 2.

Test charging and heavy-load behavior

Confirm system voltage and battery profile before enabling, then measure current and starter voltage while the house bank is charging. Demand above 30 A can cause the Duo Charge to stop and retry. Its optional external-solenoid circuit is a distinct installation for high demand; it does not turn the internal converter into a larger charger. Investigate persistent cycling and excessive voltage drop before changing fuses. See operation and overload behavior, PDF p. 5.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Regulated starter-battery maintenance charging up to 30 A from a charging house bank. Lead-acid output profiles; output demand above capacity can trigger retry cycling.

Compatible systems
12 V / 24 V
Rated output
30 A

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

HOUSE IN +

positive · input

—

START OUT +

positive · output

30 A

CONTROL GND

negative · input

—

ON/OFF

signal · bidi

—

BATTERY TEMP

signal · bidi

—

SOLENOID CONTROL

signal · bidi

—

AUTO / MANUAL

signal · bidi

—

A dash means a current rating is not specified here.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
