Kisae DMT1230 wiring diagram
DMT1230 charges a 12V house bank at up to 30A from a 12/24V alternator source or MPPT solar. PV operation is 14.5–50V with a 30A input limit; all channel negatives share an internal bus.
- Compatible systems
- 12 V
- Rated output
- 30 A
- PV open-circuit limit
- 50 V
Wiring diagram
How the DMT1230 30A is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
Cable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
3 m one way
12 V system
- Wire
- 10 mm² · 8 AWG
- Example fuse
- 40 A
- Design current
- 30 A
- Voltage drop
- 2.7%
Sized against ABYC E-11. The design current is the unit's rated output. The length is one way; voltage drop includes an equal-length return.
Run-length and manufacturer assumptions
The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.
Supporting parts
- 6.1 m total of 10 mm² (8 AWG) marine cable
- Terminations for 10 mm² cable, matched to the equipment's screw terminals, leads or studs
- 40 A fuse and holder on the positive run
- Heat-shrink, strain relief and terminal boots sized to the cable
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. MU DMT1230 Rev D), checked 2026-10-01. Manufacturer documentation →

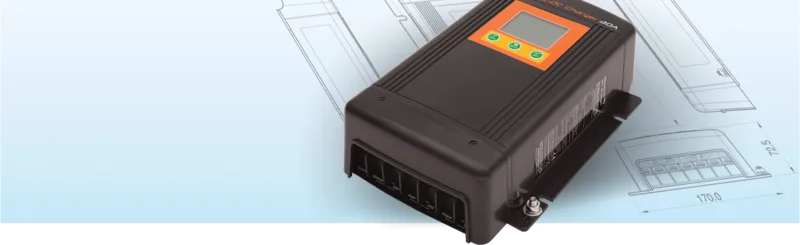

What is the DMT1230?
The Abso DMT1230 charges a 12 V house battery at up to 30 A from an alternator/starter battery or its MPPT solar input. It is not the 50 A DMT1250 or the 24 V-output DMT2430. Alternator input automatically recognizes a 12 or 24 V source. The charger selects an available source; two inputs do not mean 30 A from each can be added at the output.
How do its channels map?
BATT + / BATT − are CH1, the house battery. PV + / PV − are CH2. ALT + is the positive of CH3, which also requires a negative connection omitted from the symbol. All three channel negatives are internally joined by a busbar. The separate chassis ground stud is isolated from that negative bus and must be connected as described in the installation chapter.
The drawing also omits the smart-alternator control terminal, battery temperature sensor port, display connection, and on/off switch. Tighten power terminal bolts to 4–5 N·m, then replace their protective cover.
What wiring and protection are specified?
The Rev D wiring table, page 9 gives 40 A protection and 10 mm² / AWG 8 for the CH1 house lead below 5 ft. For CH3 below 5 ft it gives 50 A and 16 mm² / AWG 6 on a 12 V source, or 25 A and 6 mm² / AWG 10 on a 24 V source. Battery protection belongs within 7 inches / 178 mm of each battery.
The table's solar fuse values are examples for particular 300 W arrays, not universal DMT1230 ratings. Size the actual PV wiring and protection from the array specifications. Verify all channel polarities before connection, beginning with the house battery that powers the charger; it needs at least 8 V to operate.
Which input and battery settings matter?
The operating table gives 14.5–50 V PV operation and 30 A maximum PV input. Check cold-corrected array Voc against the 50 V ceiling. Alternator input current is also limited to 30 A. Normal 12 V alternator startup is above 13.2 V; the documented control/manual override lowers startup to 12.3 V for smart-alternator operation. Verify shutdown on the actual vehicle.
Select chemistry, charge current, and termination behavior. Lithium current choices are 5/10/20/30 A; charge voltage is adjustable 13.9–14.6 V. The optional temperature sensor is ignored in Lithium and Program modes, so it cannot provide low-temperature lithium protection; the battery system must handle that requirement.
Where is it mounted?
Mount permanently indoors, vertically with terminals down, with 3 inches clearance around it. Keep it away from moisture, conductive contamination, and heat; do not mount upside down or obstruct ventilation.
Fit check
Connect it to the rest of your system.
Describe your setup to draft a system with DMT1230 connected. Review the selected parts and cable lengths, then edit the diagram in Crimp.
The model only picks parts and draws the connections. Every wire size and fuse rating still comes from Crimp's own sizing, never from the model.
Enable JavaScript to describe your system.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
DMT1230 charges a 12V house bank at up to 30A from a 12/24V alternator source or MPPT solar. PV operation is 14.5–50V with a 30A input limit; all channel negatives share an internal bus.
- Compatible systems
- 12 V
- Rated output
- 30 A
- Planning charge current
- 28 A
- PV open-circuit limit
- 50 V
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
ALT +
positive · input
PV +
positive · input
PV −
negative · input
BATT +
positive · output
BATT −
negative · output
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Example sizing. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Results use the example current and run length shown above. Set your actual equipment, lengths and installation conditions in Crimp before choosing hardware.
