Blue Sea MiniSwitch 5992 connections

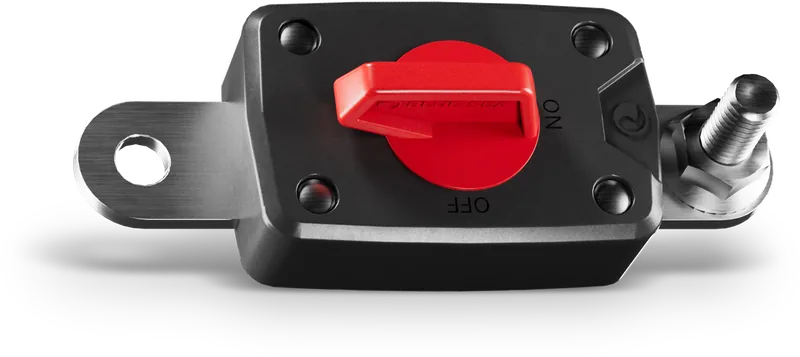

The Blue Sea MiniSwitch 5992 provides manual ON/OFF isolation directly at a battery terminal. Its sales sheet describes storage and maintenance use on boats, RVs and auxiliary battery systems. Turning it OFF disconnects the circuit routed through it; it does not monitor battery voltage or automatically stop discharge. A fuse or correctly selected breaker still provides overcurrent protection.

Blue Sea's 5992 specification gives 150 A continuous, 225 A for five minutes and 450 A starting, with 32 V maximum. Neither that page nor the sales sheet specifies a duration for 450 A. Do not treat the starting figure as a continuous limit or attach another model's 30-second rating to it.

The cable connection accepts up to 1/0 AWG (53 mm²). That is a connection limit, not an instruction to use that size in every installation. Size conductors and protection for the actual current, cable route and voltage drop; a 150 A switch rating does not automatically call for a 150 A fuse. Check starting demand separately where an engine is supplied through the switch.

The diagram's BATTERY connection represents the 3/8-inch mounting hole that fits over a positive or negative battery stud. CABLE represents the separate 5/16-inch-18 stainless-steel stud and serrated flange nut for the outgoing conductor. These are different interfaces; the mounting-hole diameter is not the cable-terminal size. The diagram illustrates positive-side isolation. A negative-side installation needs its own system review, including all other return paths.

Blue Sea lists 100 in-lb (11.3 N·m) recommended torque. Confirm the supplied instructions and battery manufacturer's limit for each connection; do not transfer that figure to the battery's own terminal hardware without checking.

Use Blue Sea's side, top and vertical drawings to assess clearance for the housing, battery lid, cable lug and switch operation. The top drawing's inch and millimetre width values disagree; confirm tight clearances with Blue Sea or the actual part. Support the cable so it does not load the battery terminal. The sales sheet identifies an enclosed housing and IP65 rating; neither removes the need to keep conductive objects away from the battery connections.

The 6005 m-Series keyed switch mounts separately on a surface or panel and uses two 3/8-inch-16 cable studs. Its instructions specify 300 A continuous, 500 A for five minutes, 900 A for 30 seconds and 48 V DC maximum, with 4/0 AWG cable per terminal to meet those ratings. Choose between them by mounting access, terminal fit and circuit duty; the similar names do not make them interchangeable.

Shut down the loads and charging sources connected to the circuit before isolation. Check which essential circuits bypass the switch and which other sources can still energize the wiring. Verify isolation before maintenance. Blue Sea links a sales sheet and dimension drawings for the 5992, but no separate installation manual was available on its product page when checked; the sales sheet is not a complete installation procedure.

For a small distribution circuit, review the Blue Sea 5026 fuse block and its separate feeder and branch limits. Use the sizing methodology to evaluate the complete circuit, including battery protection and cable sizing.
