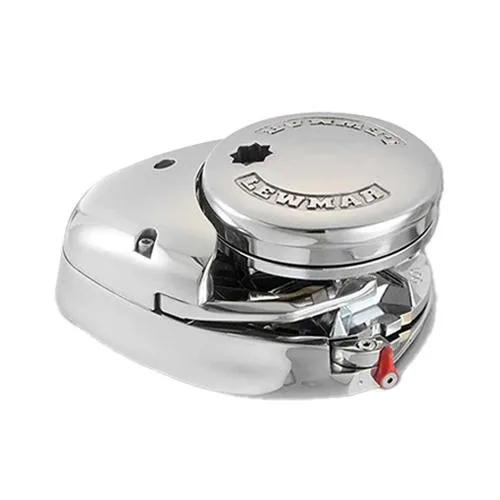

Lewmar V2 Windlass 24V

Model V2 (24V)

850W vertical anchor windlass, 24V variant. 60A working current at 24V; Lewmar specifies a 50A thermal breaker. The 12V variant has a 700W motor drawing 80A, with a 90A breaker; the 24V variant uses a higher-rated 850W motor.

Open in Crimp →
Lewmar V2 Windlass 24V
Lewmar V2 Windlass 24V · 2 terminals
01 — Wiring diagram

How the V2 windlass 24V is wired

Lewmar V2 Windlass 24V wiring diagram WIRING DIAGRAM Lewmar V2 Windlass 24V wiring diagram 24 V battery bank Supplies this load V2 windlass 24V Lewmar · V2 (24V) 100 A 25 mm² (4 AWG) → + 25 mm² (4 AWG) → − 3 m one way crimp.studio 60 A · 1.1% drop · ABYC E-11
Lewmar V2 Windlass 24V wiring diagram, 25 mm² (4 AWG) positive feed protected by a 100 A fuse and a matching negative return between the 24 V battery bank and the unit.

The run drawn here is the 3 m reference run sized below. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.

02 — Reference run

What size cable and fuse does the V2 windlass 24V need?

Conductor25 mm²4 AWG
Fuse100 Apositive run
Voltage drop1.1%3 m one way
Design current60 A24 V system

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The design current is the part's continuous draw. The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.

03 — Catalog specification

Lewmar V2 Windlass 24V specifications and terminal map

Compatible systems
24 V
Continuous draw
60 A
Surge current
70 A

Terminal map

TerminalPolarityDirectionRating
+positiveinput70 A
negativeinput70 A
04 — Supporting parts

What else you need to wire the V2 windlass 24V

  • 6 m total of 25 mm² (4 AWG) marine cable
  • Four 25 mm² cable lugs matched to the equipment studs
  • 100 A fuse and holder on the positive run
  • Heat-shrink, strain relief, and terminal boots sized to the cable

Start from this part

Open the canvas with the V2 windlass 24V already placed, then wire the rest of the system around it. Nothing to install and no sign-up — the project is saved in this browser, and you can download the file whenever you want it.

Open the canvas →

05 — Method & provenance

What is known, assumed, and computed.

Catalog profile

The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.

Engine reference

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.
