2095-204-412
SHURflo Trail King 7 Water Pump wiring diagram

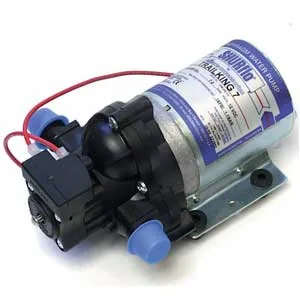

Trail King 7 aftermarket 2095-204-412 (OEM 2095-204-112), an intermittent-duty 12 V demand pump. Published typical draw is 1.5 A at open flow and 3.3 A at 1.4 bar; 3.3 A is not a startup or locked-rotor value. Use the recommended 10 A time-delay fuse and observe automatic thermal restart.
- Compatible systems
- 12 V
- Continuous draw
- 3.3 A
Wiring diagram
How the 2095-204-412 is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
Use 10 A TIME-DELAY fuse. SHURflo installation manual 911-564 specifies minimum 2.5 mm² supply and a switch rated at least 15 A, with larger cable on longer runs. Red + / black −; thermal overload resets automatically. Manufacturer installation manual
Edit this wiring exampleCable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
3.3 ft one way
12 V system
- Wire
- 13 AWG · 2.5 mm²
- Example fuse
- 10 A
- Design current
- 3.3 A
- Voltage drop
- 0.4%
Sized against ABYC E-11. The design current is the part's continuous draw. The length is one way; voltage drop includes an equal-length return.
Run-length and manufacturer assumptions
The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.
Use 10 A TIME-DELAY fuse. SHURflo installation manual 911-564 specifies minimum 2.5 mm² supply and a switch rated at least 15 A, with larger cable on longer runs. Red + / black −; thermal overload resets automatically. Manufacturer installation manual
Supporting parts
- 6.6 ft total of 13 AWG (2.5 mm²) marine cable
- Terminations for 13 AWG cable, matched to the equipment's screw terminals, leads or studs
- 10 A fuse and holder on the positive run
- Heat-shrink, strain relief and terminal boots sized to the cable
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. 2095-204-112 / aftermarket 2095-204-412 product sheet, August 2001; installation manual 911-564), checked 2026-10-01. Manufacturer documentation →
Which Trail King pump is covered?
This is the 12 V Trail King 7, aftermarket 2095-204-412, corresponding to OEM 2095-204-112 on the manufacturer sheet. It is an intermittent-duty demand pump. The performance table, page 2, gives typical draw of 1.5 A at unrestricted flow and 3.3 A at 1.4 bar. The catalog uses the upper tabulated operating value; the sheet does not establish locked-rotor or startup current.
How are its leads connected?
The electrical block, page 1, identifies 16 AWG factory leads, red positive and black negative. Supply it through an accessible pump switch and the specified protection. The built-in pressure switch controls demand operation; it is not a substitute for a supply isolator during maintenance. Factory lead gauge must not be mistaken for the required gauge of an arbitrarily long extension.
Which protection and cable apply?
SHURflo recommends a 10 A time-delay fuse for this model. The manufacturer installation manual 911-564, mirrored Italian pages, PDF page 2, specifies a dedicated circuit, a switch rated at least 15 A, matching positive and negative conductor sizes, and minimum 2.5 mm² supply wiring. Its longer-route guidance increases that size. The short example retains 2.5 mm² and 10 A time-delay protection. The fuse rating is not the pump's running load.
What operating limits need attention?
The pump's thermal overload automatically resets: a stopped hot pump can restart while power remains connected. The product sheet permits water up to 54 °C, lists 1/2-inch NPSM male ports, and gives a 20 ±5 psi shutoff setting. Use flexible hose and a suitable inlet strainer; secure the pump in a dry accessible location with ventilation.
What does commissioning involve?
Fill and purge the system, inspect for leaks, then verify reliable starts and shutoff as taps open and close. Rapid cycling calls for investigation of restrictions and plumbing, not repeated pressure-switch adjustment. Isolate the electrical feed before touching the pump and drain or winterize the water system according to the installation instructions.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
Trail King 7 aftermarket 2095-204-412 (OEM 2095-204-112), an intermittent-duty 12 V demand pump. Published typical draw is 1.5 A at open flow and 3.3 A at 1.4 bar; 3.3 A is not a startup or locked-rotor value. Use the recommended 10 A time-delay fuse and observe automatic thermal restart.
- Compatible systems
- 12 V
- Continuous draw
- 3.3 A
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
Red +
positive · input
Black −
negative · input
A dash means a current rating is not specified here.
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Example sizing. Sized against ABYC E-11 — the US reference, and what Transport Canada accepts as an alternative to TP 1332 for pleasure craft under 24 m. Results use the example current and run length shown above. Set your actual equipment, lengths and installation conditions in Crimp before choosing hardware.
