Scanstrut TILE Dual USB-C SC-TILE-20 wiring diagram

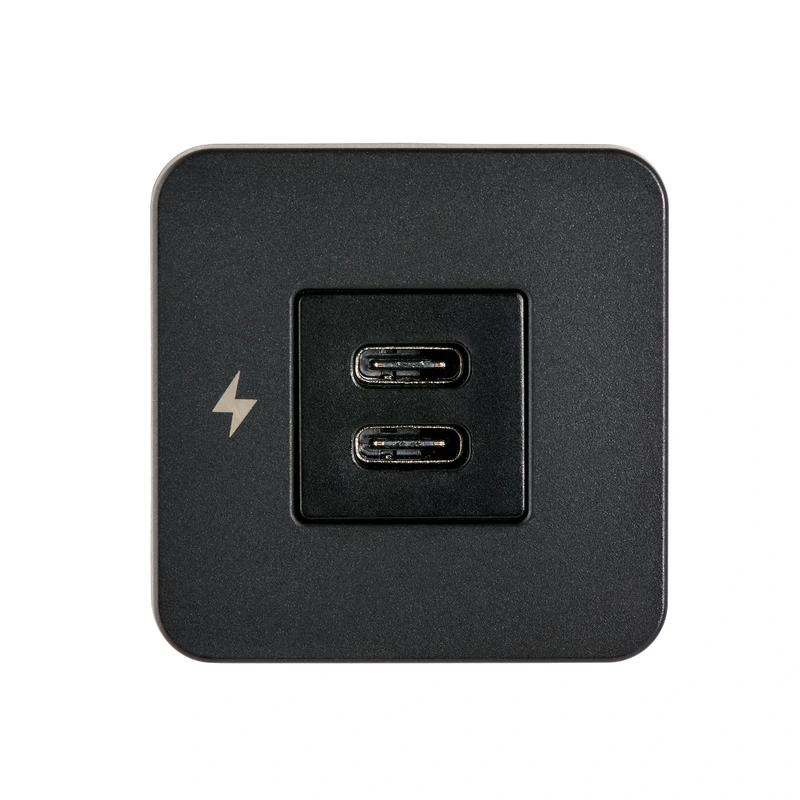

TILE SC-TILE-20 dual USB-C charger with black bezel for dry interiors. 12/24 V supply, 10–32 V DC operating range and 6 A maximum input. USB-C PD 3 / QC4; up to 36 W on 12 V or 60 W on 24 V. SC-TILE-21 is the stainless-bezel equivalent. Protect the supplied 18 AWG leads; daily use is an editable estimate.
- Nominal voltage
- 12 V
- Compatible systems
- 12 V / 24 V
- Continuous draw
- 6 A
Wiring diagram
How the TILE Dual USB-C is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
SC-TILE-20 dual USB-C, black bezel; SC-TILE-21 has the same electrical specification with a stainless bezel. The example budgets the published 6 A maximum input on either 12 V or 24 V. Rev B requires suitable supply protection but does not prescribe a fuse rating; the displayed fuse is a planning result. Preserve and protect the supplied 18 AWG leads and check extensions. Interior use only, away from water and hazardous/flammable atmospheres. Two hours per day is an editable usage assumption. Manufacturer installation manual
Edit this wiring exampleCable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
10 ft one way
12 V system
- Wire
- 13 AWG · 2.5 mm²
- Example fuse
- 7.5 A
- Design current
- 6 A
- Voltage drop
- 2.1%
Sized against ABYC E-11. The design current is the part's continuous draw. The length is one way; voltage drop includes an equal-length return.
Run-length and manufacturer assumptions
The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.
SC-TILE-20 dual USB-C, black bezel; SC-TILE-21 has the same electrical specification with a stainless bezel. The example budgets the published 6 A maximum input on either 12 V or 24 V. Rev B requires suitable supply protection but does not prescribe a fuse rating; the displayed fuse is a planning result. Preserve and protect the supplied 18 AWG leads and check extensions. Interior use only, away from water and hazardous/flammable atmospheres. Two hours per day is an editable usage assumption. Manufacturer installation manual
Supporting parts
- 20 ft total of 13 AWG (2.5 mm²) marine cable
- Terminations for 13 AWG cable, matched to the equipment's screw terminals, leads or studs
- 7.5 A fuse and holder on the positive run
- Heat-shrink, strain relief and terminal boots sized to the cable
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation, checked 2026-10-22. Manufacturer documentation →
Which TILE charger is this?
SC-TILE-20 is Scanstrut's dual-USB-C interior charger with a black bezel. SC-TILE-21 has a stainless bezel and the same electrical specification. These differ from the USB-A/C SC-TILE-10/11 models.
Scanstrut's product page describes USB-C charging up to 36 W on a 12 V system or 60 W on 24 V. These output values are not the DC supply demand.
How is it represented in Crimp?
The manufacturer's Rev B instructions specify 10–32 V DC and 6 A maximum input. Crimp budgets that maximum at either nominal voltage, without assuming a fixed-power conversion curve. Actual consumption varies with connected devices. Two hours of daily use is editable; standby draw below 0.1 W is not separately simulated.
How do I wire and mount it?
Connect red to protected DC positive and black to negative. Preserve the supplied 18 AWG leads; protect the leads and any extension. Rev B requires suitable protection without specifying a fuse rating, so Crimp's displayed fuse is a planning result.
Use a dry interior location, away from water and hazardous/flammable atmospheres. The mounting cutout is 29 mm; check rear clearance and the manufacturer's template. The two USB-C sockets are device outputs, not battery-charging terminals.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
TILE SC-TILE-20 dual USB-C charger with black bezel for dry interiors. 12/24 V supply, 10–32 V DC operating range and 6 A maximum input. USB-C PD 3 / QC4; up to 36 W on 12 V or 60 W on 24 V. SC-TILE-21 is the stainless-bezel equivalent. Protect the supplied 18 AWG leads; daily use is an editable estimate.
- Nominal voltage
- 12 V
- Compatible systems
- 12 V / 24 V
- Continuous draw
- 6 A
Terminal map
Red is DC positive and black DC negative. USB-C ports are regulated device outputs, not house-bank charging outputs. The symbol represents the DC supply pair; USB protocols and standby consumption below 0.1 W are not simulated.
+ (RED)
positive · input
− (BLACK)
negative · input
