MKR-27 / 1865115
Minn Kota MKR-27 DC Circuit Breaker 60A wiring diagram
60 A manual-reset DC circuit breaker for Minn Kota motors on 12, 24, 36 or 48 V systems. Connect BAT LINE to battery positive and AUX LOAD to the motor. Push-to-trip also opens the supply; Crimp does not simulate automatic trip timing. The manufacturer manual does not publish DC interrupt capacity or an absolute maximum operating voltage.
- Compatible systems
- 12 V / 24 V / 36 V / 48 V
Wiring diagram
How the MKR-27 · 60A is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
Cable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
Cable sizes depend on the connected equipment, current and cable lengths. Add those details in Crimp to size each run.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. 2377114 Rev A, September 2022), checked 2026-10-21. Manufacturer documentation →
Which breaker is this?

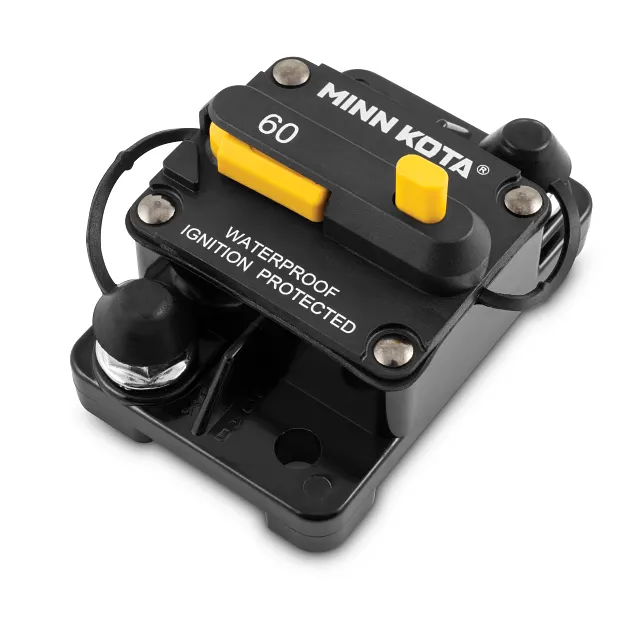

The Minn Kota MKR-27, item 1865115 is a 60 A marine DC circuit breaker with manual reset and a push-to-trip button. The manufacturer lists compatibility with 12, 24, 36 and 48 V trolling-motor systems, IP67 protection and ignition protection.
How is it connected?
Connect battery positive to BAT LINE and motor positive to AUX LOAD. The negative motor lead returns directly to battery negative. Mount near the battery and follow the motor's wire-size table. The manual specifies 50 in-lb (5.6 N·m) terminal-nut torque.
What does Crimp check?
Crimp treats this as a circuit breaker and checks the 60 A rating against conductor capacity. On closes its contacts; Off and Tripped open them. Trip timing is not simulated. The reviewed manual does not publish DC interrupt capacity or an absolute maximum operating voltage, so fault-current suitability remains unverified. Nominal 48 V compatibility does not supply either missing rating.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
60 A manual-reset DC circuit breaker for Minn Kota motors on 12, 24, 36 or 48 V systems. Connect BAT LINE to battery positive and AUX LOAD to the motor. Push-to-trip also opens the supply; Crimp does not simulate automatic trip timing. The manufacturer manual does not publish DC interrupt capacity or an absolute maximum operating voltage.
- Compatible systems
- 12 V / 24 V / 36 V / 48 V
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
BAT LINE
positive · input
AUX LOAD
positive · output
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Example sizing. Cable labels apply to the connected example, not a fixed cable size for this component. Set your actual equipment, current, lengths and installation conditions in Crimp before choosing hardware.
