HELLA EuroLED 75 Red/White 12 V connections

Review the HELLA EuroLED 75 Red/White 12 V connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Compatible systems
12 V
Rated power
3 W
Continuous draw
0.3 A

Connection overview

2JA 015 247-011 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

HELLA EuroLED 75 Red/White 12 V connection overview with 1 components: 2JA 015 247-011. 0 cable connections. Crossings are not junctions.HELLA EuroLED 75 Red/White 12 V. Two independently switched positive colour leads and a common negative require a selector topology; a generic two-terminal circuit could omit or join the colour inputs. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.2JA 015 247-011
HELLA EuroLED 75 Red/White 12 V connection overview with 1 components: 2JA 015 247-011. 0 cable connections. Crossings are not junctions.Two independently switched positive colour leads and a common negative require a selector topology; a generic two-terminal circuit could omit or join the colour inputs. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.

12 V part 2JA 015 247-011. Maximum 3 A fuse protection, separate white-light and red-light positive feeds with black common negative. Mode currents are calculated from 3 W and 1 W; do not bridge the positives. Manufacturer installation manual

Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. EuroLED75 instruction sheet 958 315-46 / 07.21), checked 2026-10-01. Manufacturer documentation →

Which lamp is represented?

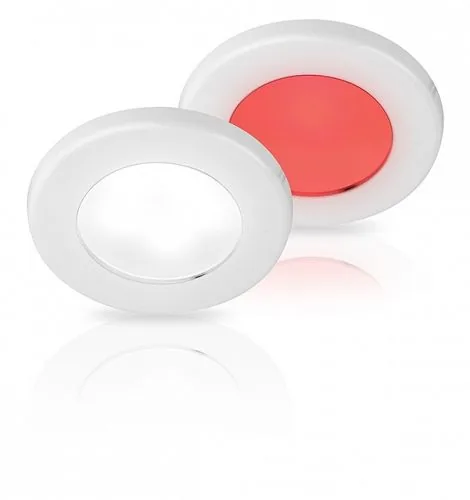

This entry is EuroLED 75 part 2JA 015 247-011: a 12 V red/white downlight with a white plastic screw-mount rim. HELLA's product family page distinguishes the mounting and colour variants. The 12 V and 24 V lamps are separate versions; this part is not a universal 12/24 V lamp.

What do the three leads do?

The instruction sheet, page 1, assigns black to common negative, white to positive for white light, and red to positive for red light. Provide separate switched feeds for colour selection. Red is therefore not the sole positive supply, and the two positives must not simply be bridged together to make a two-wire example. The page remains an overview so its topology preserves that distinction.

What current and fuse values are supported?

The wiring table assigns 3 W to white and 1 W to red. The catalog models those modes separately as calculated 0.25 A and approximately 0.083 A at 12 V. The sheet also quotes 0.19 A alongside its 3 W family specification; that inconsistency is why the conservative power-derived value is identified as a calculation rather than a measured current. Simultaneous operation of both colour feeds is not modelled.

The lamp must be protected by a fuse no greater than 3 A. That ceiling does not mean a 3 A running load or a verified 3 A terminal rating. Select actual source protection for the installed wiring and keep it within that maximum.

How is the lamp mounted and sealed?

Follow the screw-mount drawing for the chosen rim and avoid damaging the factory tinned leads. The housing is sealed to the stated IP6K7/IP6K9K rating, but cable joints still need proper environmental protection and support. Use a compatible PWM dimmer if dimming is required. Do not open the lamp: there are no user-serviceable internal parts.

What is checked before closing the ceiling?

Test each colour independently with the other positive feed isolated, confirm the selector's off position, and inspect the negative return and protected joints. Confirm that the lamp label is the 12 V part and that the fuse remains within the 3 A maximum. Secure all cables before fitting the trim.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

12 V red/white EuroLED 75 with white screw-mount rim. Black is common negative, white is the white-light positive and red is the red-light positive. White is specified at 3 W and red at 1 W; use no more than 3 A fuse protection. Separate switched feeds are required for colour selection.

Compatible systems
12 V
Rated power
3 W
Continuous draw
0.3 A

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

White + / white light

positive · input

—

Red + / red light

positive · input

—

Black common −

negative · input

—

A dash means a current rating is not specified here.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.

Read how the sizing works
