Schaudt LR 1218 wiring diagram

12 V PWM solar regulator for lead-acid / gel banks of at least 55 Ah. House priority, shared 18 A output; module Voc must remain within 25 V.

Compatible systems
12 V
Rated output
18 A
PV open-circuit limit
25 V

Wiring diagram

How the LR 1218 is wired.

Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.

Schaudt LR 1218 wiring example with 3 components: Reference PV, LR 1218, House bank. 4 cable connections. Crossings are not junctions.Reference PV PV + to LR 1218 SOLAR +: 2.5 mm² · 20 A fuse, 1 m one way. LR 1218 HOUSE + to House bank +: 2.5 mm² · 20 A fuse, 1 m one way. Reference PV PV − to LR 1218 SOLAR −: 2.5 mm², 1 m one way. LR 1218 BATTERY COMMON − to House bank −: 2.5 mm², 1 m one wayReference PV PV + to LR 1218 SOLAR +: 2.5 mm² · 20 A fuse, 1 m one wayLR 1218 HOUSE + to House bank +: 2.5 mm² · 20 A fuse, 1 m one wayReference PV PV − to LR 1218 SOLAR −: 2.5 mm², 1 m one wayLR 1218 BATTERY COMMON − to House bank −: 2.5 mm², 1 m one way200 W placeholder PV array. Example array values only: replace with the module label and temperature coefficient, then verify cold open-circuit voltage and short-circuit current against the controller limits.Reference PVPV +PV +PV −PV −Schaudt LR 1218. Direct-bank example: 20 A fuse, 2.5 mm² for <=4 m positive-plus-negative total; two 1 m conductors fit. Second bank needs its own fuse and shares total 18 A. EBL harness installations use exact connector drawing and 15/20 A fuse according to EBL marking instead. Cold module Voc <=25 V.LR 1218SOLAR +SOLAR +SOLAR −SOLAR −HOUSE +HOUSE +BATTERY COMMON −−12 V 200 Ah AGM placeholder bank. Select the sealed/AGM profile only when it matches the actual battery's voltage and charging limits. Additional banks need independent positive protection and share the same controller output budget.House bank++−−2.5 mm² · 20 A fuse2.5 mm² · 20 A fuse2.5 mm²2.5 mm²
Schaudt LR 1218 wiring example with 3 components: Reference PV, LR 1218, House bank. 4 cable connections. Crossings are not junctions.Red = positive · dark = return · dashed = signal. Cable labels are example values; use the equipment instructions and actual installation lengths.

Direct-bank example: 20 A fuse, 2.5 mm² for <=4 m positive-plus-negative total; two 1 m conductors fit. Second bank needs its own fuse and shares total 18 A. EBL harness installations use exact connector drawing and 15/20 A fuse according to EBL marking instead. Cold module Voc <=25 V. Manufacturer installation manual

Edit this wiring example

Cable sizing for this example

Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.

1 m one way

12 V system

Wire
2.5 mm² · 13 AWG
Example fuse
20 A
Design current
18 A
Voltage drop
2.1%

Sized against ABYC E-11. The design current is the unit's rated output. The length is one way; voltage drop includes an equal-length return.

Run-length and manufacturer assumptions

The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.

Direct-bank example: 20 A fuse, 2.5 mm² for <=4 m positive-plus-negative total; two 1 m conductors fit. Second bank needs its own fuse and shares total 18 A. EBL harness installations use exact connector drawing and 15/20 A fuse according to EBL marking instead. Cold module Voc <=25 V. Manufacturer installation manual

Show sizes in AWG

Supporting parts

  1. 2 m total of 2.5 mm² (13 AWG) marine cable
  2. Terminations for 2.5 mm² cable, matched to the equipment's screw terminals, leads or studs
  3. 20 A fuse and holder on the positive run
  4. Heat-shrink, strain relief and terminal boots sized to the cable

Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. 22 September 2009; combined operating/installation manuals, manufacturer-authored retailer mirror), checked 2026-10-01. Manufacturer documentation →

Match an older PWM system

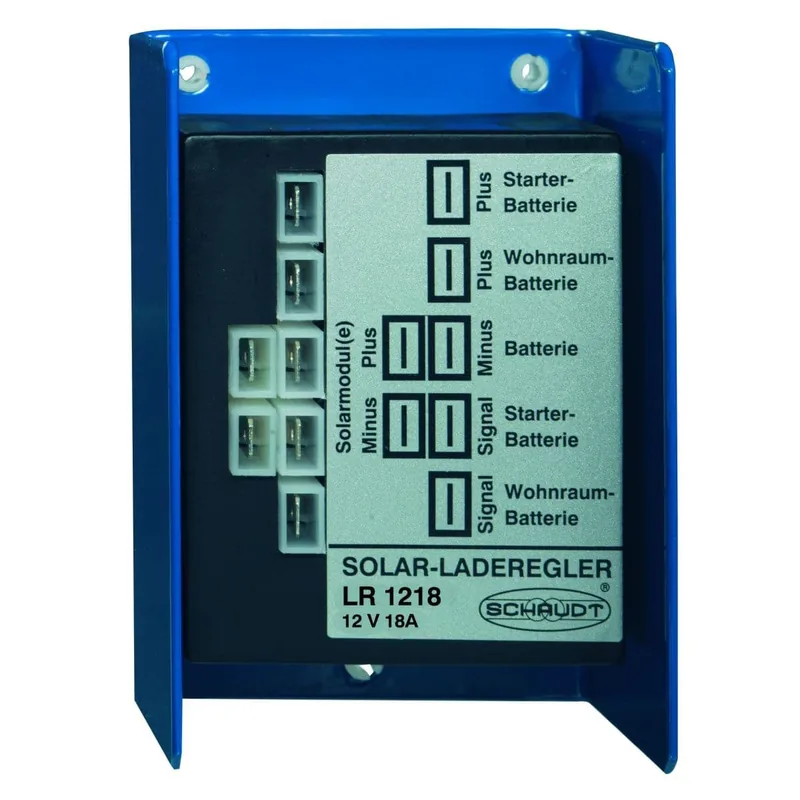

LR 1218 is a 12 V PWM regulator for lead-acid or gel batteries of at least 55 Ah. It prioritizes the leisure bank and can maintain a starter bank within an 18 A total charging budget. It is not the later LRM MPPT model. The maximum module open-circuit voltage is only 25 V, with 19 A maximum module short-circuit current; many modern high-voltage roof panels exceed that envelope. See technical data, PDF p. 17.

Direct battery wiring or EBL harness

The solar connector has its own positive and negative pair. Battery wiring includes leisure positive, starter positive and a common negative. Optional display connections report charging information rather than supplying loads. For a direct connection, route each positive to its correct bank and connect the common return before applying solar.

An Elektroblock installation instead uses the harness and connector positions for the exact EBL model. The manual shows different arrangements, including one three-way connector and a split adapter. Connector position, not wire colour alone, determines the destination. See EBL connection drawing, PDF p. 13.

Protect both battery feeds

The direct-battery diagram uses 20 A fuses in the positive leads. An EBL installation may require a 15 A or 20 A solar fuse according to its front-panel marking; do not replace it automatically with the direct-wiring value. Cable lengths are out and back combined: up to 4 m uses 2.5 mm², up to 8 m uses 4 mm², and up to 12 m uses 6 mm². See cable table, PDF p. 11 and direct-bank protection, PDF p. 12.

Connect and check in order

Connect the battery side before the solar module; disconnect solar first when removing the regulator. Under useful sun, confirm charging at the leisure bank, then verify starter maintenance as the priority bank fills. An unlit optional display or low solar current needs voltage and polarity checks before assuming a failed regulator. A correctly sized fuse does not make an over-voltage PV module compatible.
