Balmar XT-250 (Lithium) wiring diagram
12 V XT-250 alternator family with external P-type regulation and Smart Ready backup. Case-grounded; verify mounting and pulley suffix. Output depends on speed, cooling and regulator limits. Lithium charging requires coordinated BMS shutdown and thermal/current control.
- Rated output
- 250 A
Wiring diagram
How the XT-250 250A is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
Cable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
3 m one way
12 V system
- Wire
- 95 mm² · 3/0 AWG
- Example fuse
- 350 A
- Design current
- 250 A
- Voltage drop
- 2.3%
Sized against ABYC E-11. The design current is the unit's rated output. The length is one way; voltage drop includes an equal-length return.
Run-length and manufacturer assumptions
The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.
Supporting parts
- 6.1 m total of 95 mm² (3/0 AWG) marine cable
- Terminations for 95 mm² cable, matched to the equipment's screw terminals, leads or studs
- 350 A fuse and holder on the positive run
- Heat-shrink, strain relief and terminal boots sized to the cable
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Reviewed against manufacturer family documentation (rev. SUP-0207 REV F — 11/17/2021), checked 2026-10-01. Exact variant details still require confirmation. Manufacturer documentation →
Identify the 12 V XT-250 variant

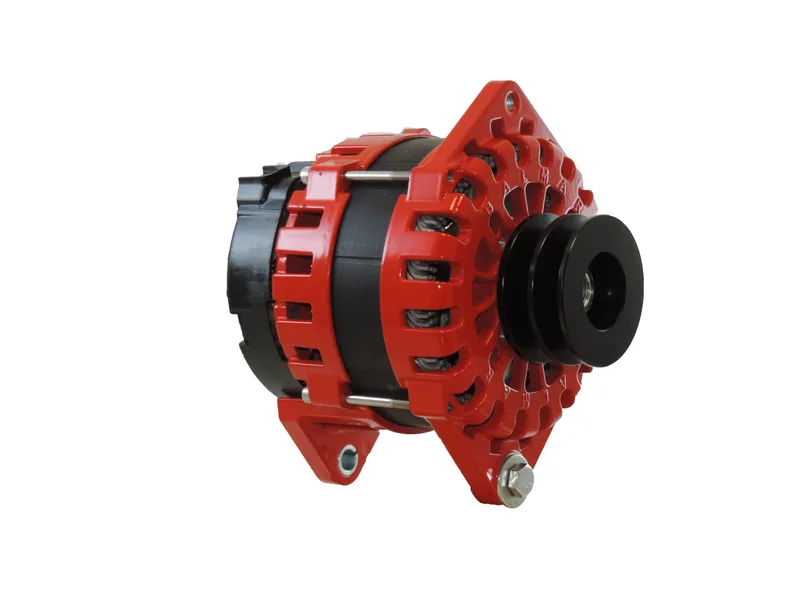

XT-250 describes an alternator family, not a complete mounting/kit part number. Balmar lists single-foot, saddle and Vortec configurations, with pulley variants. The XT datasheet identifies external P-type regulation with an internal Smart Ready backup regulator. Confirm the full part number; the internally regulated wakeboat XT-IR version has separate instructions.
The 250 A nameplate figure is not a promise of uninterrupted hot-idle charging. Output depends on shaft speed, temperature, belt drive, regulator limits and the battery's permitted charge rate. The catalog's 180 A typical value is a planning assumption that needs an installed-system check.
Follow the correct terminals and return path
Manual page 13 identifies B+, the white stator/tach lead, blue external field lead, red internal-regulator sense lead and brown internal-regulator excite lead. This XT-250 is case-grounded. The canvas GND connection represents its return path through the case/engine grounding system, not proof of a separate isolated negative output stud.
Use the wiring scheme for either the intended external regulator or the supported internal-regulator arrangement. Do not connect both excitation systems by improvisation. Support the heavy output cable so the stud carries no cable weight or vibration load.
Size the drive and charging circuit together
Balmar's family guidance requires a suitable dual-vee or serpentine drive. Verify pulley alignment, belt capacity, engine loading and cooling before increasing field output. Size output/return conductors and battery-side fault protection for the actual installation, including hot engine-bay conditions and voltage drop.
Battery voltage sensing and alternator temperature sensing are important parts of the regulator installation. Keep sense wiring distinct from the high-current output, and use the regulator's specified protection and harness.
Coordinate lithium shutdown
A lithium battery that accepts high charge current can keep the alternator heavily loaded. Configure charge-voltage, current and thermal limits to the battery and alternator specifications. Provide a supported BMS-to-regulator shutdown path so field output is removed before the battery disconnects; an unexpected open circuit while charging can damage the charging system.
Commission gradually with measurements at battery and alternator terminals, checking hot output, belt behaviour and shutdown response. Do not interpret the simplified two-terminal canvas as a complete regulator or load-dump protection design.
Fit check
Connect it to the rest of your system.
Describe your setup to draft a system with XT-250 connected. Review the selected parts and cable lengths, then edit the diagram in Crimp.
The model only picks parts and draws the connections. Every wire size and fuse rating still comes from Crimp's own sizing, never from the model.
Enable JavaScript to describe your system.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
12 V XT-250 alternator family with external P-type regulation and Smart Ready backup. Case-grounded; verify mounting and pulley suffix. Output depends on speed, cooling and regulator limits. Lithium charging requires coordinated BMS shutdown and thermal/current control.
- Rated output
- 250 A
- Planning charge current
- 180 A
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
B+
positive · output
GND
ground · bidi
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Example sizing. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Results use the example current and run length shown above. Set your actual equipment, lengths and installation conditions in Crimp before choosing hardware.
Read how the sizing worksNext step
