Arco Zeus Alternator Regulator

Model Zeus

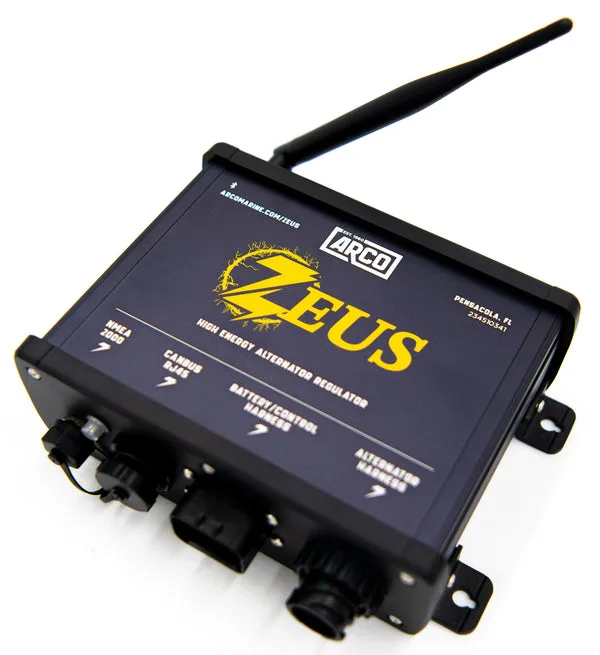

High-energy external alternator regulator. Drives a high-output alternator's field and integrates with a Victron Lynx Smart BMS NG over VE.Can / NMEA 2000 (DVCC) plus an ATC enable. Powered from the battery through small fuses; carries no main charge current itself.

Open in Crimp →
Arco Zeus Alternator Regulator
Arco Zeus Alternator Regulator · 3 terminals
01 — Wiring diagram

How the Zeus Regulator is wired

Arco Zeus Alternator Regulator wiring diagram WIRING DIAGRAM Arco Zeus Alternator Regulator wiring diagr… 12 V battery bank Supplies this load Zeus Regulator Arco Marine · Zeus 1 A 1.5 mm² (16 AWG) → BAT V+ 1.5 mm² (16 AWG) → BAT GND 3 m one way Field crimp.studio 0.5 A · 0.3% drop · ABYC E-11
Arco Zeus Alternator Regulator wiring diagram, 1.5 mm² (16 AWG) positive feed protected by a 1 A fuse and a matching negative return between the 12 V battery bank and the unit, plus Field.

The run drawn here is the 3 m reference run sized below. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.

02 — Reference run

What size cable and fuse does the Zeus Regulator need?

Conductor1.5 mm²16 AWG
Fuse1 Apositive run
Voltage drop0.3%3 m one way
Design current0.5 A12 V system

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The design current is the part's continuous draw. The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.

03 — Catalog specification

Arco Zeus Alternator Regulator specifications and terminal map

Nominal voltage
24 V
Compatible systems
12 V / 24 V / 36 V / 48 V
Continuous draw
0.5 A

Terminal map

TerminalPolarityDirectionRating
BAT V+positiveinput10 A
BAT GNDgroundinput10 A
Fieldsignaloutput1 A
04 — Supporting parts

What else you need to wire the Zeus Regulator

  • 6 m total of 1.5 mm² (16 AWG) marine cable
  • Four 1.5 mm² cable lugs matched to the equipment studs
  • 1 A fuse and holder on the positive run
  • Heat-shrink, strain relief, and terminal boots sized to the cable

Start from this part

Open the canvas with the Zeus Regulator already placed, then wire the rest of the system around it. Nothing to install and no sign-up — the project is saved in this browser, and you can download the file whenever you want it.

Open the canvas →

05 — Method & provenance

What is known, assumed, and computed.

Catalog profile

The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.

Engine reference

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.

Read the complete methodology →
