SK12V206H (150 A version)

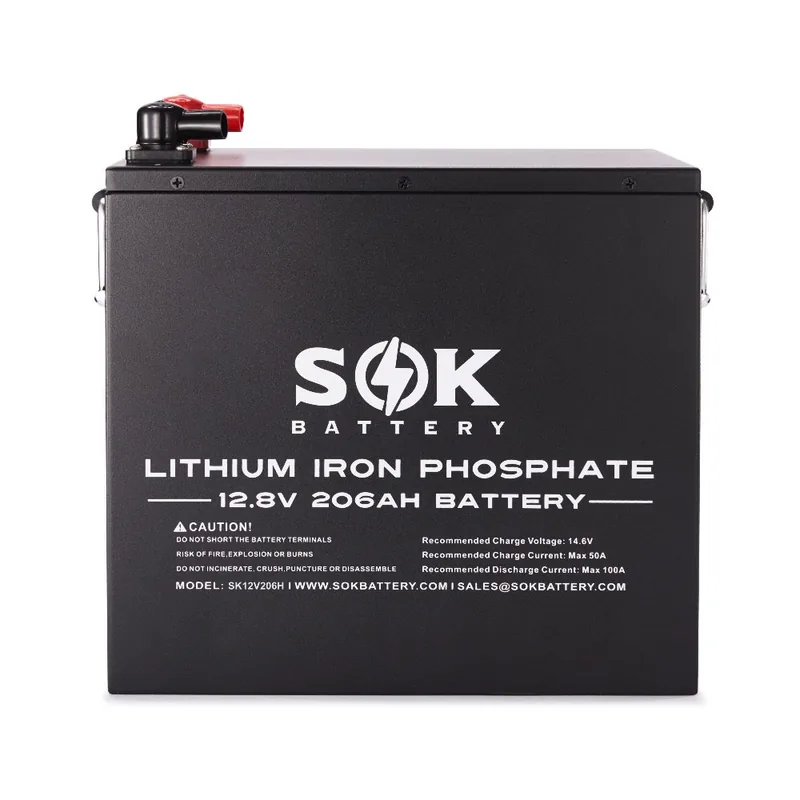

SOK SK12V206H Heated LiFePO4 206 Ah (150 A version) wiring diagram

See the SOK SK12V206H Heated LiFePO4 206 Ah (150 A version) connection points and wiring example. Open the diagram in Crimp to add your equipment and plan the cables between them.

Open this example as a new project. Use your own parts and cable lengths to make the plan yours.

About this wiring example

Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.

Cable sizes depend on the connected equipment, current and cable lengths. Add those details in Crimp to size each run.

Show sizes in AWG

Wiring diagram

How the SK12V206H (150 A version) is wired.

Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.

SOK SK12V206H Heated LiFePO4 206 Ah (150 A version) wiring example with 4 components: SK12V206H (150 A version), Battery disconnect, Fused DC distribution, DC fridge. 5 cable connections. Crossings are not junctions.Fused DC distribution 1 to DC fridge +: 4 mm² · 7.5 A fuse, 3 m one way. Fused DC distribution 1 to DC fridge −: 4 mm², 3 m one way. SK12V206H (150 A version) BATTERY + to Battery disconnect A: 70 mm² · 200 A fuse, 3 m one way. Battery disconnect B to Fused DC distribution IN +: 70 mm² · 7.5 A fuse, 3 m one way. SK12V206H (150 A version) BATTERY − to Fused DC distribution IN −: 50 mm², 3 m one wayFused DC distribution 1 to DC fridge +: 4 mm² · 7.5 A fuse, 3 m one wayFused DC distribution 1 to DC fridge −: 4 mm², 3 m one waySK12V206H (150 A version) BATTERY + to Battery disconnect A: 70 mm² · 200 A fuse, 3 m one wayBattery disconnect B to Fused DC distribution IN +: 70 mm² · 7.5 A fuse, 3 m one waySK12V206H (150 A version) BATTERY − to Fused DC distribution IN −: 50 mm², 3 m one waySOK SK12V206H Heated LiFePO4 206 Ah (150 A version)SK12V206H (150 Aversion)BATTERY +BATTERY +BATTERY −BATTERY −Main Battery SwitchBattery disconnectABBlue Sea 5025 ST Blade Fuse BlockFused DC distributionIN +IN +IN −IN −1111Dometic CRX-65 FridgeDC fridge++−−4 mm² · 7.5 A fuse4 mm²70 mm² · 200 A fuse70 mm² · 7.5 A fuse50 mm²
SOK SK12V206H Heated LiFePO4 206 Ah (150 A version) wiring example with 4 components: SK12V206H (150 A version), Battery disconnect, Fused DC distribution, DC fridge. 5 cable connections. Crossings are not junctions.Red = positive · dark = return · dashed = signal. Cable labels are example values; use the equipment instructions and actual installation lengths.Scroll sideways to inspect all components and connections.
Edit this wiring example

Installation notes

Connections and installation requirements.

Guidance for this model, with sources linked beside the relevant advice.

Verified against the manufacturer's documentation (rev. SK12V206/SK12V206H manufacturer datasheet; manual edition 250725), checked 2026-10-01. Manufacturer documentation →

Check the battery revision

The downloaded SK12V206/SK12V206H data sheet describes a 12.8 V, 206 Ah battery with 150 A continuous discharge, 70 A maximum charge, and 170 A discharge for four seconds. This record explicitly covers that 150 A version. Similar product listings mention other BMS revisions; confirm the fitted battery label and its supplied documentation before applying these limits. The internal BMS does not replace external short-circuit protection. See exact model ratings, PDF p. 1.

Posts, protection and installation

Connect positive to a suitably rated battery fuse and isolation arrangement, and negative to the system return or battery-side shunt terminal. The M8 posts require 9–11 Nm according to the data sheet; support the cables so their weight does not twist the posts. Select conductor and fuse ratings for the actual load, charge sources and available fault current. IP50 describes the metal case: this is not an exposed bilge or spray-proof battery.

Charge and combine compatible batteries

Use a charger configured for the documented 14.4–14.6 V range and within 70 A maximum; 40 A is the recommended charge current. The manual warns against direct alternator charging and mixing battery types. Before series connection, individually charge the batteries as instructed. Parallel branches need equal conductor sizes and lengths; the downloaded data sheet permits up to four in series and ten in parallel. Do not silently apply a different listing's larger parallel limit. See series preparation, PDF p. 6 and parallel connections, PDF p. 8.

Confirm BMS and heating behavior

The H version includes heating, but this source set does not justify inventing a heater-current budget or exact thermostat thresholds. Check the supplied revision's cold-weather instructions and live BMS temperature/protection state before charging cold cells. The Bluetooth app exposes charge/discharge permission and protection status. If the pack is asleep or in storage mode, follow the documented wake procedure instead of bypassing the BMS. See BMS indicators, PDF p. 11 and sleep and wake behavior, PDF p. 12.

Build it out

Connect it to the rest of your system.

Add SK12V206H (150 A version) to your diagram, then connect your batteries, chargers and loads. Crimp calculates cable sizes and checks the connections as you draw.

Every cable you draw there is sized against ABYC E-11, from the same tables as the reference on this page.

Technical reference

Specifications, terminals and supporting parts.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Nominal voltage
12.8 V
Compatible systems
12 V
Capacity
206 Ah
Surge current
170 A
Maximum discharge
150 A

Supporting parts

  1. A lug or terminal to match each post on the part
  2. Strain relief and boots so nothing chafes or shorts
  3. Cable and fuses sized once the whole system is drawn

Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

BATTERY +

pos

positive · bidi

150 A

BATTERY −

neg

negative · bidi

150 A

Method & provenance

Where the specifications and sizing come from.

Manufacturer specifications describe the equipment. Crimp calculates cable results from the circuit and assumptions you enter.

From the maker

What the catalog says

Manufacturer, model, ratings and which terminal does what come from the catalog. A newer revision, or the nameplate on the unit in your hand, can say something different — when it does, the nameplate wins.

ABYC E-11

What Crimp worked out

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The run length and the current above are what drive the result. Crimp doesn't know how warm your space gets; draw the cable inside an engine-bay zone on the canvas and it sizes for the heat.
