ProMariner ProSafe FS30 connections

Review the ProMariner ProSafe FS30 connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Connection overview

ProSafe FS30 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

ProMariner ProSafe FS30 connection overview with 4 components: ProSafe FS30, 120 V shore inlet, Main + branch AC protection, Vessel AC circuits. 7 cable connections. Crossings are not junctions.120 V shore inlet L to Main + branch AC protection L. 120 V shore inlet N to Main + branch AC protection N. 120 V shore inlet PE to ProSafe FS30 SHORE ⏚: Shore protective earth. ProSafe FS30 BOAT ⏚ to Main + branch AC protection PE: Vessel protective earth. Main + branch AC protection L to Vessel AC circuits L. Main + branch AC protection N to Vessel AC circuits N. Main + branch AC protection PE to Vessel AC circuits PE120 V shore inlet L to Main + branch AC protection L120 V shore inlet N to Main + branch AC protection N120 V shore inlet PE to ProSafe FS30 SHORE ⏚: Shore protective earthProSafe FS30 BOAT ⏚ to Main + branch AC protection PE: Vessel protective earthMain + branch AC protection L to Vessel AC circuits LMain + branch AC protection N to Vessel AC circuits NMain + branch AC protection PE to Vessel AC circuits PEProMariner ProSafe FS30. The galvanic isolator belongs only in shore protective earth, ahead of vessel earth connections. Line and neutral pass through the separate shore protection panel; no earth bypass or DC battery return is shown. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.ProSafe FS30SHORE ⏚SHORE ⏚BOAT ⏚BOAT ⏚120 V shore inlet. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.120 V shore inletLLNPEPEMain + branch AC protection. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.Main + branch ACprotectionLLNPEPELLNPEPEVessel AC circuits. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.Vessel AC circuitsLLNPEPEShore protective earth
ProMariner ProSafe FS30 connection overview with 4 components: ProSafe FS30, 120 V shore inlet, Main + branch AC protection, Vessel AC circuits. 7 cable connections. Crossings are not junctions.The galvanic isolator belongs only in shore protective earth, ahead of vessel earth connections. Line and neutral pass through the separate shore protection panel; no earth bypass or DC battery return is shown. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.
Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. 04/08), checked 2026-10-01. Manufacturer documentation →

Which ProSafe is covered by the source?

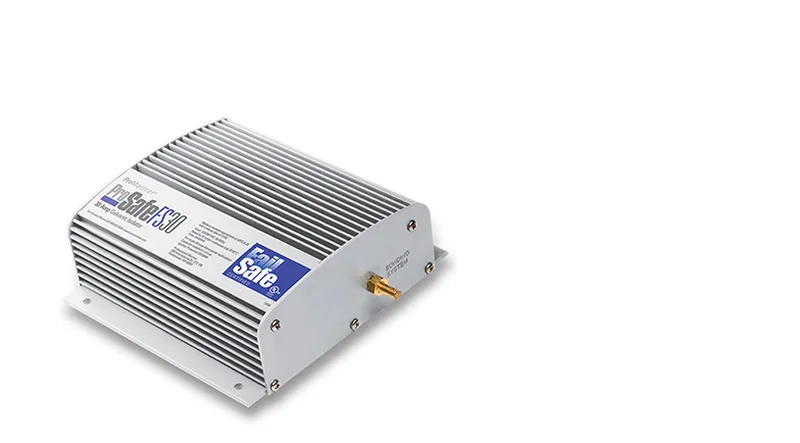

The ProSafe FS30, part 22034, is for a single shore cord up to 30 A. The manufacturer's FS30/FS60 owner's manual is retained here from Defender's document mirror because a working manufacturer-hosted copy was not located. Its printed issue is 04/08; confirm it against the label and instructions supplied with your unit.

The cover distinguishes the FS30 from the FS60 used for a 50 A cord or two 30 A cords. Its separate 41 A product rating does not authorise using an FS30 on a larger shore inlet.

What passes through SHORE and BOAT?

Only the green or green/yellow protective-earth conductor passes through the two non-polarised studs. The diagram's SHORE ⏚ denotes the incoming earth and BOAT ⏚ the vessel's AC ground/bonding bus. Line and neutral follow their own protected AC paths.

Printed page 3 requires a series installation near the shore entry with no alternative earth conductor bypassing the isolator. Printed page 5 shows the single-30 A FS30 arrangement. The other diagram on that page is an FS60 dual-inlet arrangement and must not be copied as an FS30 installation.

How should the FS30 be installed?

The manual calls for a dry, ventilated location, clearance around and above the unit, and unobstructed cooling. Its safety label limits ambient temperature to 50°C. Secure all four mounting positions and protect the connections from corrosion, moisture and salt spray.

Printed page 3 specifies 8.8 in-lb stud-nut torque. This is a small-terminal torque, not a battery-bus torque. Follow the actual unit's instructions if its hardware differs. The manual says the case does not require a separate ground connection.

What does fail-safe operation leave to check?

The intended failure mode preserves the protective-earth path, but a shorted isolator no longer blocks galvanic current. The unit has no built-in status monitor. A shore connection that still works is therefore not proof of continuing corrosion protection.

Printed page 7 gives a qualified-service test using an isolated unit and a meter's diode range, allowing readings to settle in both directions because of the internal capacitor. Shore power must be disconnected and every protective-earth connection restored before service resumes. Check the manufacturer's procedure after a suspected lightning event.

The catalog drawing omits the inlet, AC breakers, leakage protection and any transfer equipment. It documents the isolator's earth-path role, not the completeness of the boat's AC system.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

ProSafe FS30, part 22034, for one shore cord up to 30 A. Installs in the protective-earth conductor near the inlet without a bypass path. Fail-safe operation preserves earth continuity but does not indicate continued galvanic isolation; no built-in status monitor.

Use the manufacturer's complete diagram to select conductors, protection and control wiring.
