PHILIPPI STV 108 Switch Panel

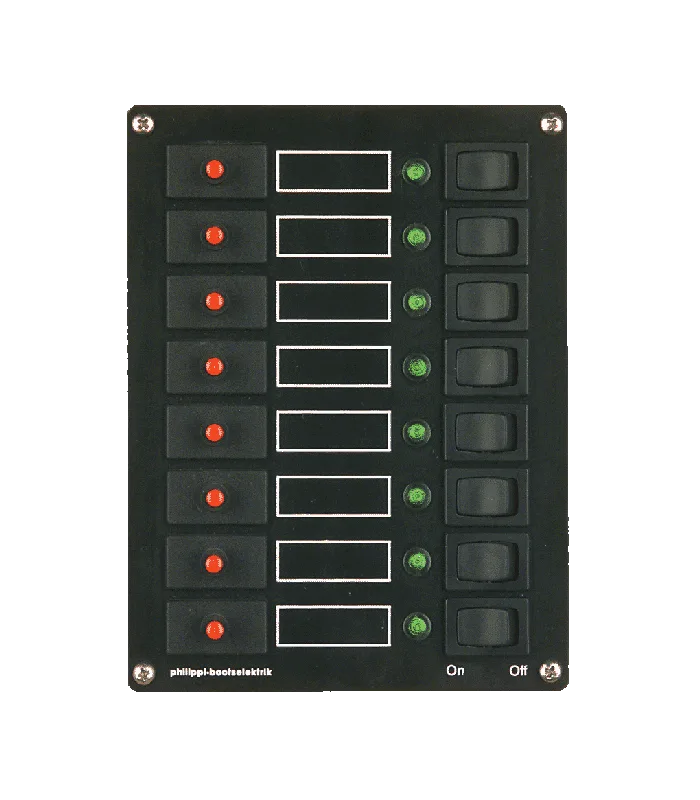

PHILIPPI STV 108 — 8-position 12/24 V switch panel (W 110 × H 145 mm) with illuminated rocker switches and E-T-A 1140 series thermal-magnetic automatic circuit breakers. 8 A per circuit standard (4/6/10/12/16 A available on request); ~64 A panel total.
This part has no feed of its own to size, so its cables are sized from the complete system topology once you draw what it connects to.
Wiring diagram
How the STV 108 is wired.
The drawing shows where the feed, the return and the fuse land on this part. The starter uses the same reference circuit and sizing assumptions. Read the installation notes for manufacturer requirements before adapting the runs.
Build it out
Build the system it goes in.
Open the canvas with STV 108 already placed, then add your batteries, charging, distribution and loads around it.
Every cable you draw there is sized against ABYC E-11, from the same tables as the reference on this page.
Technical reference
Specs, terminals and the parts around them.
The catalog facts for this part, which terminal takes what, and the hardware you'll want around it. Check the nameplate on your own unit before you order.
Catalog specification
This part has no rating of its own to list. What matters is its terminals — see the map beside.
Supporting parts
- A lug or terminal to match each post on the part
- Strain relief and boots so nothing chafes or shorts
- Cable and fuses sized once the whole system is drawn
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
IN +
in-pos
positive · input
