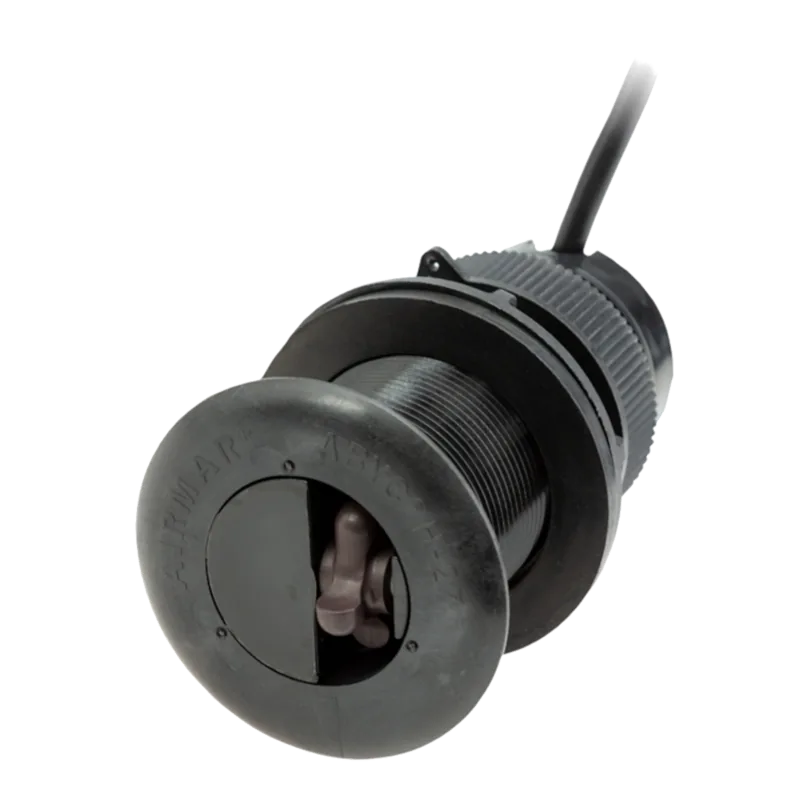

Airmar DST810 Smart Multisensor connections

Review the Airmar DST810 Smart Multisensor connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Nominal voltage
12 V
Compatible systems
12 V

Connection overview

DST810 connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Airmar DST810 Smart Multisensor connection overview with 1 components: DST810. 0 cable connections. Crossings are not junctions.Airmar DST810 Smart Multisensor. Through-hull sensor is powered within its NMEA 2000 drop, not from standalone terminals. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.DST810
Airmar DST810 Smart Multisensor connection overview with 1 components: DST810. 0 cable connections. Crossings are not junctions.Through-hull sensor is powered within its NMEA 2000 drop, not from standalone terminals. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.
Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. D-17-435-01 Rev 16, September 16 2021), checked 2026-10-01. Manufacturer documentation →

Match the insert, housing and hull

DST810 measures depth, speed through the water, temperature and attitude, with CAST Bluetooth calibration. This walkthrough follows the retained DST800/DST810 Rev 16 instructions and the DST810 product specification; check the cable tag and supplied instructions for later Gen2 hardware. The retained Gen2 brochure, revision I dated February 11 2026, supplies the electrical specification. Plastic housings suit fiberglass or metal hulls, not wood. Bronze must not be installed in a metal hull. Stainless installations in metal need the specified isolation arrangement.

Use a powered network, not the acoustic rating

The manufacturer lists 9–16 V through NMEA 2000 and LEN 3. Include that allocation in the backbone design. The product’s acoustic rating is not a continuous battery load. The retained 2026 brochure separately reports supply current below 200 mA and LEN 3; keep both published values visible when checking the actual network budget rather than deriving current from acoustic watts. The sensor symbol has one signal connector marker; the planner does not simulate NMEA network power. Keep the factory connector, protect cable routing and separate it from sources of electrical interference.

Prepare for a watertight removable insert

Choose smooth water flow with an unobstructed beam and room inside to remove the insert; the manual calls for 280 mm clearance. Point the insert’s arrow toward the bow. The housing valve only slows water ingress during removal: always install the sensor or blanking plug completely. Use intact lubricated O-rings of the correct type and fit the safety wire. Do not substitute a plug or O-ring by appearance; valved and non-valved housings differ.

Pretest, launch-check and calibrate

Before cutting the hull, connect to the instrument, spin the paddlewheel and check speed plus plausible air temperature. After launching, inspect immediately for leaks and follow the manual’s repeated checks; never leave an unverified new through-hull unattended. Use CAST to set depth offset and calibrate speed, temperature and attitude against appropriate references. Speed over ground includes current and is not automatically the same as speed through water. Clean fouling with suitable methods and keep the paddlewheel free; pressure washing can damage the assembly.

Manual and scope

Airmar installation manual, D-17-435-01 Rev 16, September 16 2021; pp. 1–6, especially housing/O-ring warnings p. 1, routing p. 4 and CAST p. 5. The original PDF is retained in the marine source ledger. The drawing represents the identified electrical interfaces; it does not simulate the equipment’s mechanical performance, radio signals or fluid system. Unpublished connector ampacity and startup current remain unspecified.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Through-hull retractable depth/speed/temperature/attitude sensor powered by NMEA 2000. Manufacturer specifications give 9–16 V and LEN 3; acoustic power is not battery draw. The water valve does not form a watertight closure without the insert or blanking plug.

Nominal voltage
12 V
Compatible systems
12 V

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

NMEA 2000

signal · bidi

—

A dash means a current rating is not specified here.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
