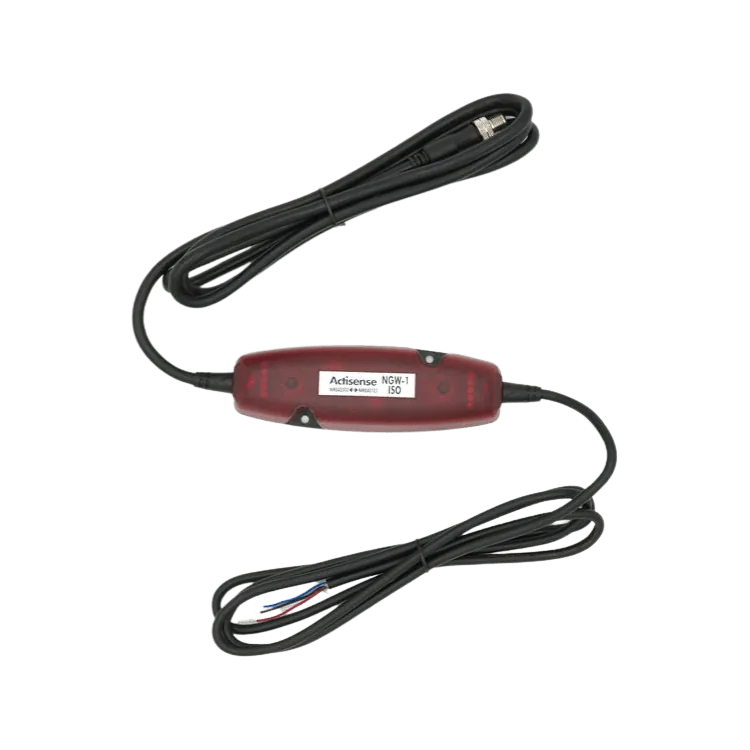

Actisense NGW-1-ISO NMEA Gateway connections

Review the Actisense NGW-1-ISO NMEA Gateway connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Nominal voltage
12 V
Compatible systems
12 V

Connection overview

NGW-1-ISO connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Actisense NGW-1-ISO NMEA Gateway connection overview with 1 components: NGW-1-ISO. 0 cable connections. Crossings are not junctions.Actisense NGW-1-ISO NMEA Gateway. Backbone-powered gateway has no independent DC supply pair; connector markers do not simulate NMEA power. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.NGW-1-ISO
Actisense NGW-1-ISO NMEA Gateway connection overview with 1 components: NGW-1-ISO. 0 cable connections. Crossings are not junctions.Backbone-powered gateway has no independent DC supply pair; connector markers do not simulate NMEA power. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.
Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. User Manual v3.2), checked 2026-10-01. Manufacturer documentation →

Use the ISO variant’s power arrangement

NGW-1-ISO converts supported NMEA 0183 sentences and NMEA 2000 PGNs. This is the ISO cable version, not NGW-1-USB: its operating supply comes from a powered NMEA 2000 backbone. The manual specifies 35 mA at 12 V, maximum 50 mA and LEN 1. Add that demand to the network power budget. The gateway’s internal 9.5–35 V tolerance does not authorize running other NMEA 2000 equipment from a 24 V boat bank.

Wire talker to listener, not color to color

On the ISO/0183 cable, red is IN A/+ and black IN B/−, accepting the other device’s talker output. White is OUT A/+ and blue OUT B/−, feeding its listener input. The cable’s shield/screen is marked ISO GND and is left unconnected in the standard device-to-device diagram. These red and black wires are signal inputs, not battery leads. Check A/B labels at both devices, since naming and colors differ between manufacturers.

Build the backbone before commissioning conversions

Connect the Micro-C drop to a correctly powered and terminated NMEA 2000 network. Use a compatible adapter if the vessel has a proprietary connector system. Do not attach loose battery leads to the 0183 interface. The symbol intentionally offers data connector markers rather than standalone DC terminals; it cannot calculate power delivery inside a NMEA backbone. Protect and size the backbone feed for all connected devices.

Choose conversions and verify both directions

Match the 0183 baud rate and enable only the sentences/PGNs required by the connected equipment. Actisense Toolkit configures supported firmware; confirm the actual firmware and conversion list before promising an instrument value will translate. A flashing receive indicator proves incoming traffic, not that a matching conversion is enabled or received by the destination. If one direction fails, check the source’s talker pair, destination’s listener pair, baud rate and conversion settings in that order.

Manual and scope

Actisense installation manual, User Manual v3.2; pp. 4–6 for power and wiring, pp. 8–11 configuration, p. 12 specifications. The original PDF is retained in the marine source ledger. The drawing represents the identified electrical interfaces; it does not simulate the equipment’s mechanical performance, radio signals or fluid system. Unpublished connector ampacity and startup current remain unspecified.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Isolated NMEA conversion gateway powered by the NMEA 2000 backbone: 35 mA at 12 V, maximum 50 mA, LEN 1. NMEA 0183 pairs carry data rather than appliance power. The planner does not propagate the backbone supply through the signal marker.

Nominal voltage
12 V
Compatible systems
12 V

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

NMEA 2000

signal · bidi

—

NMEA 0183

signal · bidi

—

A dash means a current rating is not specified here.

Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
