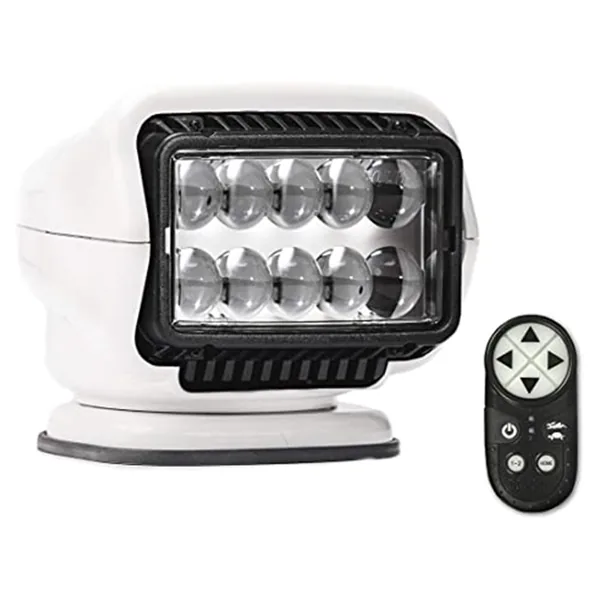

Golight Stryker ST 30004ST LED Searchlight wiring diagram
Permanent-mount 12 V Stryker ST LED searchlight. The LED specification is 3.5 A maximum at 13.8 V with a 5 A fuse. Wireless remote control changes aiming; its AAA batteries are separate. Halogen current and fuse specifications in the same guide do not apply.
- Nominal voltage
- 12 V
- Compatible systems
- 12 V
- Continuous draw
- 3.5 A
Wiring diagram
How the Stryker ST LED is wired.
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
This supply example retains the manufacturer's 5 A fuse. Follow the complete installation notes for connector polarity, mounting, controls and commissioning; verify the actual cable route and equipment revision. Manufacturer installation manual
Edit this wiring exampleCable sizing for this example
Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.
3 m one way
12 V system
- Wire
- 1.5 mm² · 16 AWG
- Example fuse
- 5 A
- Design current
- 3.5 A
- Voltage drop
- 2.1%
Sized against ABYC E-11. The design current is the part's continuous draw. The length is one way; voltage drop includes an equal-length return.
Run-length and manufacturer assumptions
The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.
This supply example retains the manufacturer's 5 A fuse. Follow the complete installation notes for connector polarity, mounting, controls and commissioning; verify the actual cable route and equipment revision. Manufacturer installation manual
Supporting parts
- 6.1 m total of 1.5 mm² (16 AWG) marine cable
- Terminations for 1.5 mm² cable, matched to the equipment's screw terminals, leads or studs
- 5 A fuse and holder on the positive run
- Heat-shrink, strain relief and terminal boots sized to the cable
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. ST Series Wireless Instruction Guide, undated), checked 2026-10-01. Manufacturer documentation →
Keep LED and halogen specifications separate
30004ST is the white permanent-mount LED Stryker ST. Its instruction guide lists 3.5 A maximum at 13.8 V and a 5 A fuse. Other models in the same guide are halogen with different current and fuse requirements. The light needs a 12 V vessel supply; it is not a direct 24 V appliance. The handheld remote runs from its own two AAA cells and does not take its operating power through the light’s supply cable.
Connect a protected supply with room to rotate
Connect the identified positive and negative light leads to a protected supply and return, retaining a 5 A fuse for the LED model. Identify the actual harness before relying on wire color. Size extensions for the route and loaded voltage drop; the guide does not publish a universal extension-gauge limit. Leave about 3 inches of cord beneath the mounting surface as instructed, support the route and keep wiring clear of the moving head.
Mount upright and preserve drainage
The head rotates 370 degrees overall, about 185 degrees each way, and tilts through 135 degrees. Allow its approximately 11.3-inch swing diameter and avoid obstructions. Follow the mounting footprint and seal the cable hole. Do not seal the base gasket’s drainage path. The instructions prohibit inverted mounting and underwater use; an inverted installation is not made acceptable by extra sealant.
Pair the remote and test travel
Use the matching ST remote. Select spotlight 1 on the remote as instructed. Hold the remote’s power and speed buttons together while restoring light power; the guide allows learning in the first six seconds after power-up, and three flashes after three seconds confirm pairing. Test left/right and up/down travel in short movements, then full clearance without directing the beam at people. Check steady operation while moving the head. If aiming is intermittent, inspect remote batteries, pairing and supply voltage before changing the fuse or forcing the mechanism.
Manual and scope
Golight installation manual, ST Series Wireless Instruction Guide, undated; two-page manufacturer instruction sheet: mounting, pairing and separate LED/halogen electrical tables; retained from Flak mirror. The original PDF is retained in the marine source ledger. The drawing represents the identified electrical interfaces; it does not simulate the equipment’s mechanical performance, radio signals or fluid system. Unpublished connector ampacity and startup current remain unspecified.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
Permanent-mount 12 V Stryker ST LED searchlight. The LED specification is 3.5 A maximum at 13.8 V with a 5 A fuse. Wireless remote control changes aiming; its AAA batteries are separate. Halogen current and fuse specifications in the same guide do not apply.
- Nominal voltage
- 12 V
- Compatible systems
- 12 V
- Continuous draw
- 3.5 A
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
Supply +
positive · input
Return −
negative · input
A dash means a current rating is not specified here.
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Example sizing. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Results use the example current and run length shown above. Set your actual equipment, lengths and installation conditions in Crimp before choosing hardware.
