Dometic CoolMatic CD30 Drawer Fridge wiring diagram

See the Dometic CoolMatic CD30 Drawer Fridge connection points and wiring example. Open the diagram in Crimp to add your equipment and plan the cables between them.

Open this example as a new project. Use your own parts and cable lengths to make the plan yours.

Cable sizing for this example

Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.

1 m one way

12 V system

Wire
6 mm² · 10 AWG
Example fuse
15 A
Design current
3 A
Voltage drop
0.1%

Sized against ABYC E-11. The design current is the part's continuous draw. The length is one way; voltage drop includes an equal-length return.

Run-length and manufacturer assumptions

The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.

12 V example: manufacturer protection at least 15 A; 6 mm² and 1 m each leg conservatively meet the page 7 cable chart. At 24 V protection changes to 7.5 A and rated draw to 1.5 A. Use the correct chart for the actual route. Manufacturer installation manual

Show sizes in AWG

Wiring diagram

How the CoolMatic CD30 is wired.

Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.

Dometic CoolMatic CD30 Drawer Fridge wiring example with 3 components: House bank, Fused DC distribution, CoolMatic CD30. 4 cable connections. Crossings are not junctions.Fused DC distribution 1 to CoolMatic CD30 +: 6 mm² · 15 A fuse, 1 m one way. Fused DC distribution 1 to CoolMatic CD30 −: 6 mm², 1 m one way. House bank + to Fused DC distribution IN +: 6 mm² · 5 A fuse, 30 cm one way. House bank − to Fused DC distribution IN −: 6 mm², 30 cm one wayFused DC distribution 1 to CoolMatic CD30 +: 6 mm² · 15 A fuse, 1 m one wayFused DC distribution 1 to CoolMatic CD30 −: 6 mm², 1 m one wayHouse bank + to Fused DC distribution IN +: 6 mm² · 5 A fuse, 30 cm one wayHouse bank − to Fused DC distribution IN −: 6 mm², 30 cm one way12 V 200 Ah house bankHouse bank++−−Blue Sea 5025 ST Blade Fuse BlockFused DC distributionIN +IN +IN −IN −1111Dometic CoolMatic CD30 Drawer Fridge. 12 V example: manufacturer protection at least 15 A; 6 mm² and 1 m each leg conservatively meet the page 7 cable chart. At 24 V protection changes to 7.5 A and rated draw to 1.5 A. Use the correct chart for the actual route.CoolMatic CD30++−−6 mm² · 15 A fuse6 mm²6 mm² · 5 A fuse6 mm²
Dometic CoolMatic CD30 Drawer Fridge wiring example with 3 components: House bank, Fused DC distribution, CoolMatic CD30. 4 cable connections. Crossings are not junctions.Red = positive · dark = return · dashed = signal. Cable labels are example values; use the equipment instructions and actual installation lengths.Scroll sideways to inspect all components and connections.

12 V example: manufacturer protection at least 15 A; 6 mm² and 1 m each leg conservatively meet the page 7 cable chart. At 24 V protection changes to 7.5 A and rated draw to 1.5 A. Use the correct chart for the actual route. Manufacturer installation manual

Edit this wiring example

Installation notes

Connections and installation requirements.

Guidance for this model, with sources linked beside the relevant advice.

Verified against the manufacturer's documentation (rev. CoolMatic CD30 instruction manual, 16-page English issue), checked 2026-10-01. Manufacturer documentation →

Which CD30 and current are represented?

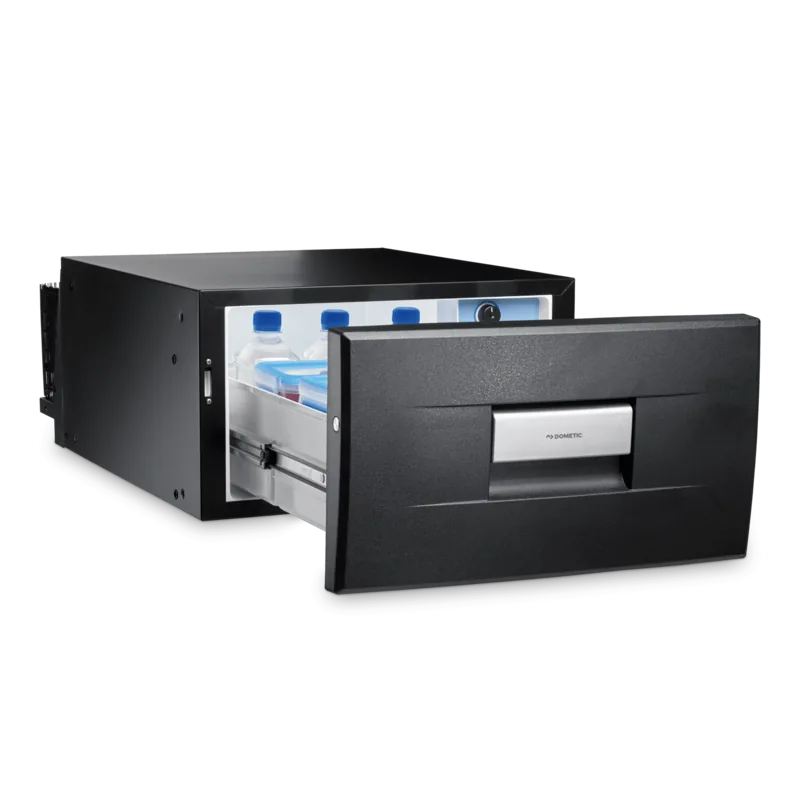

The CoolMatic CD30 is a 30 L compressor drawer refrigerator with 12/24 V DC supply. The technical table, page 14, lists 3 A at 12 V and 1.5 A at 24 V. The catalog uses the 12 V rating; it is not a claim that the compressor runs continuously or that 24 V operation draws 3 A. Cooling demand changes with ambient temperature, ventilation and drawer use.

Where does its DC supply connect?

Use the refrigerator's marked positive and negative supply connection as described on page 6. Verify polarity and keep the electrical supply separate from any improvised mains connection. The catalog terminals represent the complete refrigerator input, not the compressor motor winding or internal controller pins.

How are protection and cable size selected?

The connection instructions, page 7, specify supply protection of at least 15 A for 12 V, or 7.5 A for 24 V. These are protection requirements, not consumption or connector ratings. The same page has separate 12 V and 24 V cable cross-section curves versus battery-to-fridge distance. Follow the appropriate curve for the actual route. The page's short 12 V example uses 6 mm² conductors with 1 m per leg; it does not establish a universal maximum cable length.

What physical limits matter?

Keep the ventilation route unobstructed and mount the refrigerator as instructed. The technical table states an ambient range of 16–43 °C and a cabinet adjustment range of approximately −2 to +12 °C. Avoid directing nearby equipment's waste heat into the compressor space, because poor cooling airflow changes both performance and duty cycle.

How is it checked after installation?

Measure voltage at the refrigerator while the compressor starts and runs, then confirm cooling and secure drawer movement. The stated low-voltage cutout/restart values are 10.4/11.7 V on a 12 V supply and 22.8/24.2 V on 24 V. A cutout can therefore indicate cable loss as well as battery condition. Inspect the fuse, terminals, return path and ventilation before treating repeated shutdown as a refrigerator fault.

Build it out

Connect it to the rest of your system.

Add CoolMatic CD30 to your diagram, then connect your batteries, chargers and loads. Crimp calculates cable sizes and checks the connections as you draw.

Every cable you draw there is sized against ABYC E-11, from the same tables as the reference on this page.

Technical reference

Specifications, terminals and supporting parts.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Compatible systems
12 V / 24 V
Rated power
36 W
Continuous draw
3 A

Supporting parts

  1. 2 m total of 6 mm² (10 AWG) marine cable
  2. Terminations for 6 mm² cable, matched to the equipment's screw terminals, leads or studs
  3. 15 A fuse and holder on the positive run
  4. Heat-shrink, strain relief and terminal boots sized to the cable

Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

+

pos

positive · input

—

−

neg

negative · input

—

A dash means a current rating is not specified here.

Method & provenance

Where the specifications and sizing come from.

Manufacturer specifications describe the equipment. Crimp calculates cable results from the circuit and assumptions you enter.

From the maker

What the catalog says

Manufacturer, model, ratings and which terminal does what come from the catalog. A newer revision, or the nameplate on the unit in your hand, can say something different — when it does, the nameplate wins.

ABYC E-11

What Crimp worked out

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The run length and the current above are what drive the result. Crimp doesn't know how warm your space gets; draw the cable inside an engine-bay zone on the canvas and it sizes for the heat.
