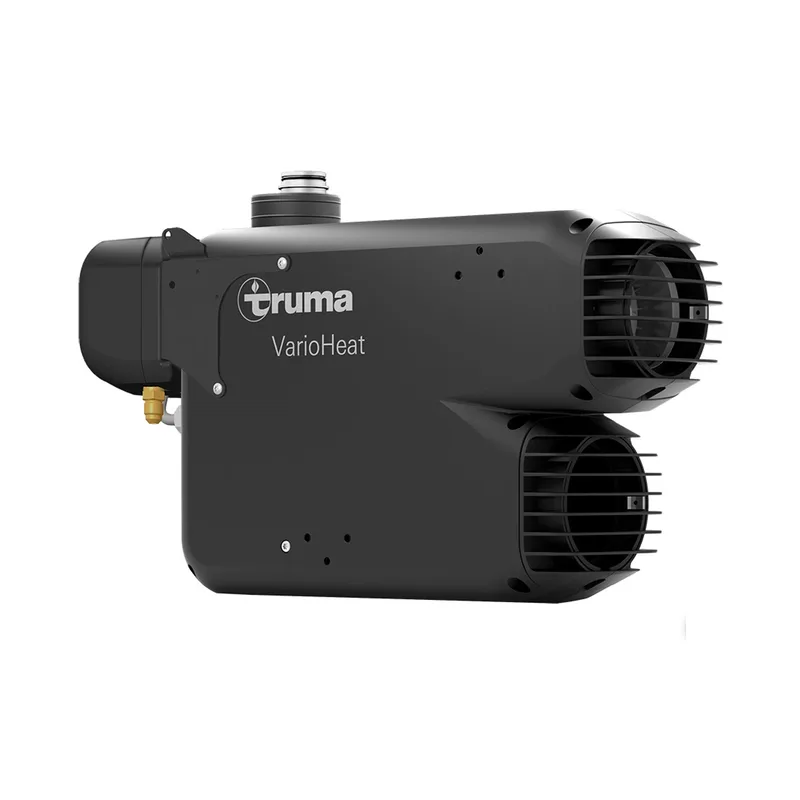

Truma VarioHeat

Model VarioHeat Comfort

Gas (propane) blown-air heater, up to 3.7 kW heat output. The 12 V draw is the combustion fan and controls — about 5.4 A at maximum, far less on lower stages.

Open in Crimp →
Truma VarioHeat
Truma VarioHeat · 2 terminals
01 — Wiring diagram

How the VarioHeat is wired

Truma VarioHeat wiring diagram WIRING DIAGRAM Truma VarioHeat wiring diagram 12 V battery bank Supplies this load VarioHeat Truma · VarioHeat Comfort 7.5 A 2.5 mm² (13 AWG) → + 2.5 mm² (13 AWG) → − 3 m one way crimp.studio 5.4 A · 1.9% drop · ABYC E-11
Truma VarioHeat wiring diagram, 2.5 mm² (13 AWG) positive feed protected by a 7.5 A fuse and a matching negative return between the 12 V battery bank and the unit.

The run drawn here is the 3 m reference run sized below. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Confirm your own run length, routing and terminations before ordering — open this part in the designer to size it against your actual system.

02 — Reference run

What size cable and fuse does the VarioHeat need?

Conductor2.5 mm²13 AWG
Fuse7.5 Apositive run
Voltage drop1.9%3 m one way
Design current5.4 A12 V system

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The design current is the part's continuous draw. The Crimp engine applies its ordinary continuous-load headroom, voltage-drop budget, terminal clamp, and standard fuse ladder. The 3 m one-way run is a stated reference, not a universal installation prescription.

03 — Catalog specification

Truma VarioHeat specifications and terminal map

Compatible systems
12 V
Rated power
65 W
Continuous draw
5.4 A

Terminal map

TerminalPolarityDirectionRating
+positiveinput10 A
negativeinput10 A
04 — Supporting parts

What else you need to wire the VarioHeat

  • 6 m total of 2.5 mm² (13 AWG) marine cable
  • Four 2.5 mm² cable lugs matched to the equipment studs
  • 7.5 A fuse and holder on the positive run
  • Heat-shrink, strain relief, and terminal boots sized to the cable

Start from this part

Open the canvas with the VarioHeat already placed, then wire the rest of the system around it. Nothing to install and no sign-up — the project is saved in this browser, and you can download the file whenever you want it.

Open the canvas →

05 — Method & provenance

What is known, assumed, and computed.

Catalog profile

The manufacturer, model, ratings and terminal map are maintained as planning data in Crimp's component catalog. Confirm the current manufacturer manual, exact revision and installed nameplate before ordering or wiring.

Engine reference

Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The published conductor, fuse and voltage-drop result uses the visible reference length and current basis; it is not a universal installation prescription.

Read the complete methodology →
