Webasto Thermo Top Evo 5 Diesel connections

Review the Webasto Thermo Top Evo 5 Diesel connections, setup and installation requirements. This overview does not calculate cable or protection sizes.

Compatible systems
12 V
Rated power
31 W
Continuous draw
2.6 A

Connection overview

Thermo Top Evo 5 D connections.

See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.

Webasto Thermo Top Evo 5 Diesel connection overview with 1 components: Thermo Top Evo 5 D. 0 cable connections. Crossings are not junctions.Webasto Thermo Top Evo 5 Diesel. The 31 W rating excludes coolant pump and vehicle blower; standard W-bus/RV-HD/Cronus harnesses have distinct control and separately fused branches. A generic two-wire example is not a complete system. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.Thermo Top Evo 5 D
Webasto Thermo Top Evo 5 Diesel connection overview with 1 components: Thermo Top Evo 5 D. 0 cable connections. Crossings are not junctions.The 31 W rating excludes coolant pump and vehicle blower; standard W-bus/RV-HD/Cronus harnesses have distinct control and separately fused branches. A generic two-wire example is not a complete system. Connection overview only. Cable lengths are placeholders; use the complete manufacturer diagram to select conductors and protection. No automatic fuse or cable-size recommendation is supplied by this example.
Edit this connection overview

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. Thermo Top Evo installation instructions 9041701A, manufacturer document hosted by Fomco), checked 2026-10-01. Manufacturer documentation →

Which heater and electrical load are represented?

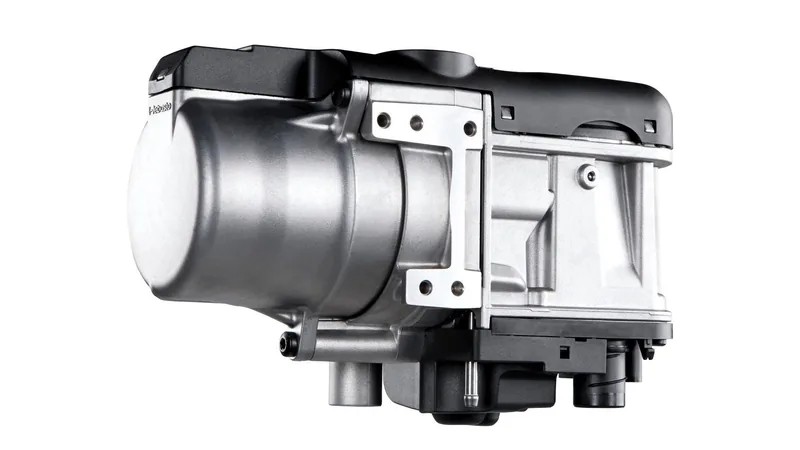

This entry is the 12 V diesel Thermo Top Evo 5 kW, not the petrol model or a complete vehicle heating system. The technical tables, pages 29 and 31, give 31 W at maximum heating for the heater and 14 W for the U4847econ coolant pump. The heater figure explicitly excludes both that pump and the vehicle blower. The catalog's 31 W / 12 V calculation therefore represents only the heater's nominal running load, not startup demand or total system current.

How do the connectors differ?

The W-bus car diagram, page 20, shows the X2 power pair and the separate X1 control connector. X1 pin 2 is W-bus, pin 5 controls the vehicle blower and pin 6 serves the fuel pump. These are dedicated harness functions, not interchangeable battery terminals. Signal markers on the component preserve those distinctions without pretending to reproduce the entire loom.

The pin table, page 23, distinguishes standard car and RV/HD versions: pins 1, 3 and 4 have additional functions only in the applicable RV/HD arrangement. Do not apply an analogue on/off feed to a standard W-bus heater based on another variant's diagram.

How is the loom protected?

The car diagram includes separate F1 20 A heater and F2 30 A blower branches, with further low-current control protection. This is not one 20 A two-wire appliance. Webasto states on page 19 that the diagram's cable cross-sections apply to lengths below 4.5 m. Use the vehicle-specific installation and supplied harness to establish the actual branch layout, wire lengths and blower control.

What commissioning is required?

Route coolant, combustion air, fuel and exhaust according to the installation manual before connecting power. The first-start procedure, page 28, requires the appropriate Webasto diagnostic process, a cold enough coolant circuit to permit firing, and checks for fuel and coolant leaks. Maintain supply through the controlled shutdown sequence. The page is an overview because an isolated pair of supply wires cannot demonstrate that this heating system is complete.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

Thermo Top Evo 5 kW diesel heater: 31 W nominal at maximum heat, excluding the 14 W coolant pump and vehicle blower. Standard W-bus and RV/HD control pin assignments differ. Use the exact vehicle harness and its separate heater, blower and control fuses; this is a system overview.
