MAXXAIR MAXXFAN Dome Plus 3810 connections
Review the MAXXAIR MAXXFAN Dome Plus 3810 connections, setup and installation requirements. This overview does not calculate cable or protection sizes.
- Compatible systems
- 12 V
Connection overview
Dome Plus 3810 connections.
See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. MAXXFAN Dome instructions 11-90056, 09-24-2019), checked 2026-10-01. Manufacturer documentation →
Which Dome version is covered?

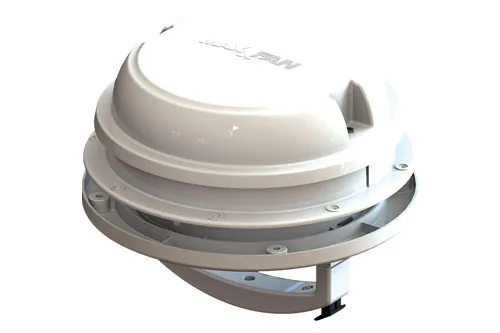

This is the MAXXFAN Dome Plus 3810 with LED lighting, shown in white as 00-03810W. The unlit version is the Dome 3812. Both share one instruction booklet; use its LED installation steps for this 3810. The opening and supply requirements, page 1, call for a 6¼-inch opening and a suitable roof or wall thickness of 1–6 inches.
What do the supply leads represent?
Follow the LED instructions, step 7 on page 6: join the fan and LED leads marked POS 12VDC to the protected positive supply, and join both leads marked Neg. 12VDC to its negative return using the supplied wire nuts. The catalog shows the two separate lead pairs and uses their marked labels rather than assuming wire colours. The light and fan have independent push-button switches. Keep the connections protected from abrasion and water, and verify polarity before restoring power.
What is known about current and protection?
MAXXAIR requires a 12 V supply capable of at least 2 A. That is a minimum service capability, not a stated operating current. The manual also identifies a 5 A GMA fast-acting internal fuse on page 7. Neither value establishes the continuous rating of the connector or the correct source-branch fuse for every cable route. Running draw and extension sizing remain unspecified here, so no invented daily energy estimate or complete generic supply circuit is shown.
How should it be mounted and operated?
Use the supplied mounting sequence and a sealant compatible with the mounting surface. Open the lid before running the fan; the lid is not a motorised damper. Keep the screen fitted and keep hands away from the blade. This is a general ventilation fan, not equipment for exhausting combustible vapours.
What is checked after installation?
Confirm that the lid opens freely, the fan and LED light each respond to their own switch, and the flange remains sealed after a water check. If the appliance fuse has opened, isolate power and investigate before replacing it with the same type. Clean the accessible surfaces and screen using the manual's mild-cleaner method rather than solvents that can damage the plastic.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
MAXXFAN Dome Plus 3810 with independently switched LED lighting. Join the fan and LED positive leads to the protected positive supply and both negative leads to its return. The instructions require a 12 V service capable of at least 2 A and an internal 5 A GMA fast-acting fuse; neither number is a verified running draw or source-branch fuse prescription. Operate only with the lid open and screen fitted.
- Compatible systems
- 12 V
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
FAN POS 12 VDC
positive · input
FAN NEG 12 VDC
negative · input
LED POS 12 VDC
positive · input
LED NEG 12 VDC
negative · input
A dash means a current rating is not specified here.
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
