Review how the Fiamma LED Awning Light 98655-848 connects, how it operates and which installation requirements apply to this model.
Open this example as a new project. Use your own parts and cable lengths to make the plan yours.
The manufacturer requires an upstream inhibit while the vehicle is running. A basic two-wire supply omits this mandatory control.
The manufacturer requires an upstream inhibit while the vehicle is running. A basic two-wire supply omits this mandatory control.
Wiring diagram
Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.
Installation notes
Guidance for this model, with sources linked beside the relevant advice.
Verified against the manufacturer's documentation (rev. LED Awning Light 98655-848, F0_IS_98690-327 revision C, manufacturer PDF mirrored by Camping-Car-Plus), checked 2026-10-01. Manufacturer documentation →

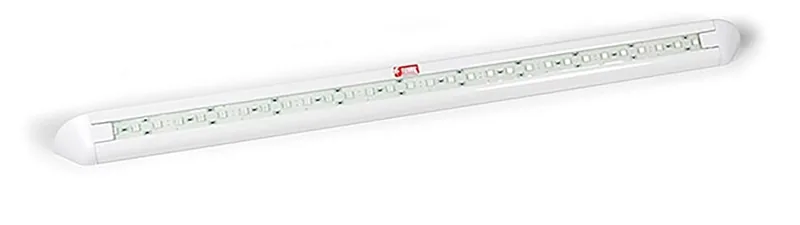

This is Fiamma LED Awning Light 98655-848 as documented by instruction revision C. The specification table, page 3, gives 12 V, 7.4 W and 0.62 A, with IP54 protection. Some retailer listings quote older electrical values; check the actual label and instruction revision rather than mixing those figures. The light is a long exterior fitting, not a general unsealed LED strip.
The installation illustration, page 8, shows the lamp's two-wire 12 V supply. The catalog terminals represent those supply poles. The drawing does not establish a universal red/black colour code or a numbered connector map, so confirm polarity from the supplied lamp and harness markings before making connections.
The English electrical instructions, page 10, require supply from the fuse box and correctly sized cable and connections. They do not publish a numeric fuse or minimum cross-section for every installation. The catalog's 0.62 A is the stated lamp draw, not an instruction to fit a particular fuse. Protect the cable at its source and account for its real route and environment.
Fiamma requires the electrical arrangement to prevent current reaching the lamp while the vehicle is running. That upstream interlock is not physically built into the lamp's two supply terminals. The detail page therefore remains an overview rather than showing an ordinary switched branch as a complete installation. Provide the appropriate vehicle-running inhibit and verify its behaviour before travel.
Follow the mounting and cable-routing sequence with power isolated, protect holes and joints against water, and secure the lead clear of moving awning parts. Test the lamp when parked, then verify that the chosen running signal inhibits it. Inspect for glare, mechanical interference and water entry. Disconnect supply before maintenance; IP54 does not justify exposing the fitting or its connections to pressure washing.
Build it out
Add LED Awning Light 98655-848 to your diagram, then connect your batteries, chargers and loads. Crimp calculates cable sizes and checks the connections as you draw.
Every cable you draw there is sized against ABYC E-11, from the same tables as the reference on this page.
Technical reference
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
+
pos
positive · input
−
neg
negative · input
A dash means a current rating is not specified here.
Method & provenance
Manufacturer specifications describe the equipment. Crimp calculates cable results from the circuit and assumptions you enter.
From the maker
Manufacturer, model, ratings and which terminal does what come from the catalog. A newer revision, or the nameplate on the unit in your hand, can say something different — when it does, the nameplate wins.
ABYC E-11
Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. The run length and the current above are what drive the result. Crimp doesn't know how warm your space gets; draw the cable inside an engine-bay zone on the canvas and it sizes for the heat.
