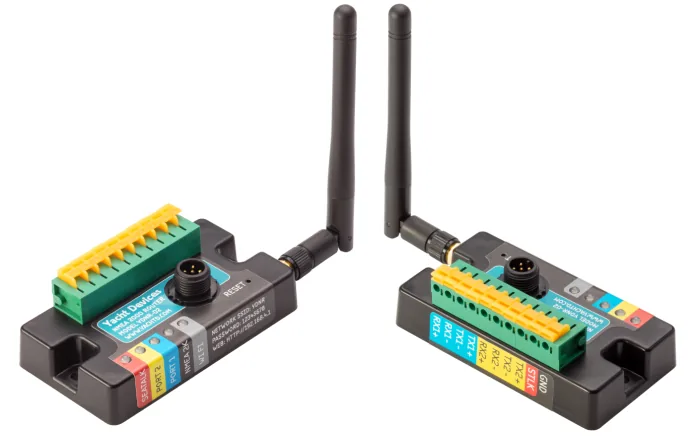

Yacht Devices YDNR-02N Wi-Fi Router connections
Review the Yacht Devices YDNR-02N Wi-Fi Router connections, setup and installation requirements. This overview does not calculate cable or protection sizes.
- Nominal voltage
- 12 V
- Compatible systems
- 12 V
Connection overview
YDNR-02N connections.
See how this component fits into a system. Use the manufacturer’s installation instructions for the complete connections.
Installation notes
Before you install.
Open a question for model-specific guidance and sources.
Verified against the manufacturer's documentation (rev. YDNR02-003, firmware 1.71, March 8 2024), checked 2026-10-01. Manufacturer documentation →
A marine-data router, not an internet modem
YDNR-02N shares NMEA 2000, two NMEA 0183 ports and SeaTalk data with Wi-Fi applications. Its built-in Web Gauges work without an internet connection. The unit draws power from NMEA 2000, specified at 7–17 V and at most 60 mA with the 0183 ports loaded; its declared network allocation is LEN 2. The drop cable is not included. Reserve its demand in the independently protected backbone budget.
Keep SeaTalk power out of the data terminal
Connect the SeaTalk yellow data conductor to SeaTalk and its ground/shield to GND. The SeaTalk red supply conductor is not connected to this router and must be insulated. For each 0183 port, connect router RX to the source TX and router TX to the destination RX using the manual’s differential or single-ended diagram. Do not ground a differential TX− output merely because it is labeled minus. The symbol’s ports are data markers, not buses.
Place it where radio and wiring can work
Mount in a dry protected location; the manual warns against flooding, rain and spray. Keep the antenna accessible and test wireless coverage before final mounting. Metal structures can greatly reduce the useful range even if the equipment is close in straight-line distance. Turn off backbone power before attaching the network connector, and retain proper network termination.
Configure a controlled data route
Factory port settings distinguish low-speed 4800-baud instrument traffic from 38400-baud AIS traffic. Match the connected devices rather than blindly copying the other port. Set the required TCP/UDP server protocol and use filters to avoid routing the same messages around a loop. Verify data in Web Gauges or a diagnostic application, then test the intended navigation application. If a client has Wi-Fi but no instrument values, inspect network power, source traffic, port baud and routing before resetting all settings.
Manual and scope
Yacht Devices installation manual, YDNR02-003, firmware 1.71, March 8 2024; pp. 7–11 specifications/network installation, pp. 16–19 0183/SeaTalk connections, configuration chapters. The original PDF is retained in the marine source ledger. The drawing represents the identified electrical interfaces; it does not simulate the equipment’s mechanical performance, radio signals or fluid system. Unpublished connector ampacity and startup current remain unspecified.
Technical reference
Specifications and terminal map.
Check the model, ratings and connection points against your own unit before choosing installation hardware.
Catalog specification
NMEA 2000-powered Wi-Fi router with two bidirectional NMEA 0183 ports and a SeaTalk data port. Supply is 7–17 V, maximum 60 mA, LEN 2. SeaTalk red power is isolated, not tied to router power. Backbone consumption is documented but not propagated by signal markers.
- Nominal voltage
- 12 V
- Compatible systems
- 12 V
Terminal map
Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.
NMEA 2000
signal · bidi
NMEA 0183 #1
signal · bidi
NMEA 0183 #2
signal · bidi
SeaTalk
signal · bidi
A dash means a current rating is not specified here.
Sources and sizing method
Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.
Connection overview. This diagram explains the connection arrangement; it does not calculate cable sizes or protection for the installation. Follow the manufacturer’s complete wiring and protection instructions.
