CTEK MXS 7.0 wiring diagram

12 V lead-acid charger, 7.2 A maximum, for 14–150 Ah batteries and maintenance up to 225 Ah. Model 1053 uses 220–240 VAC and has Normal, AGM, Recond and 13.6 V Supply programs; no lithium mode. IP65-rated, with clamp and Comfort Connect eyelet leads.

Rated output
7.2 A
Units

Wiring diagram

How the MXS 7.0 is wired.

Open this example in Crimp to use your own parts and cable lengths. Review the assumptions and installation notes as you adapt the circuit.

CTEK MXS 7.0 wiring example with 3 components: MXS 7.0, Battery disconnect, House bank. 3 cable connections. Crossings are not junctions.MXS 7.0 BATT + to Battery disconnect A: 2.5 mm² · 10 A fuse, 3 m one way. MXS 7.0 BATT − to House bank −: 2.5 mm², 3 m one way. Battery disconnect B to House bank +: 2.5 mm² · 10 A fuse, 30 cm one wayMXS 7.0 BATT + to Battery disconnect A: 2.5 mm² · 10 A fuse, 3 m one wayMXS 7.0 BATT − to House bank −: 2.5 mm², 3 m one wayBattery disconnect B to House bank +: 2.5 mm² · 10 A fuse, 30 cm one wayCTEK MXS 7.0MXS 7.0BATT +BATT +BATT −BATT −Main Battery SwitchBattery disconnectAB12 V 50 Ah AGM placeholder bank. Example bank only: select the correct charger profile and confirm the actual battery's capacity, charging-current acceptance, voltage and temperature limits. Placeholder current limits are not manufacturer battery specifications.House bank++−−2.5 mm² · 10 A fuse2.5 mm²2.5 mm² · 10 A fuse
CTEK MXS 7.0 wiring example with 3 components: MXS 7.0, Battery disconnect, House bank. 3 cable connections. Crossings are not junctions.Red = positive · dark = return · dashed = signal. Wire sizes and fuse ratings are example values; use the equipment instructions and actual installation lengths.
Edit this wiring example

Cable sizing for this example

Use the diagram as a starting point for your installation. Replace the example equipment and cable lengths with your own, and check the connections against your exact model's instructions.

3 m one way

12 V system

Wire
2.5 mm² · 13 AWG
Example fuse
10 A
Design current
7.2 A
Voltage drop
2.6%

Sized against ABYC E-11. The design current is the unit's rated output. The length is one way; voltage drop includes an equal-length return.

Run-length and manufacturer assumptions

The editable example uses 3.048 m (10 ft) runs unless a shorter run is stated. Metric overviews round these to 3 m. Adapt the parts and lengths to your installation before choosing cable and protection.

Supporting parts

  1. 6.1 m total of 2.5 mm² (13 AWG) marine cable
  2. Terminations for 2.5 mm² cable, matched to the equipment's screw terminals, leads or studs
  3. 10 A fuse and holder on the positive run
  4. Heat-shrink, strain relief and terminal boots sized to the cable

Check stud sizes, fuse type, run length and how warm the space gets against the gear you actually have before you order.

Installation notes

Before you install.

Open a question for model-specific guidance and sources.

Verified against the manufacturer's documentation (rev. 20015462F), checked 2026-09-30. Manufacturer documentation →

Which MXS 7.0 is represented here?

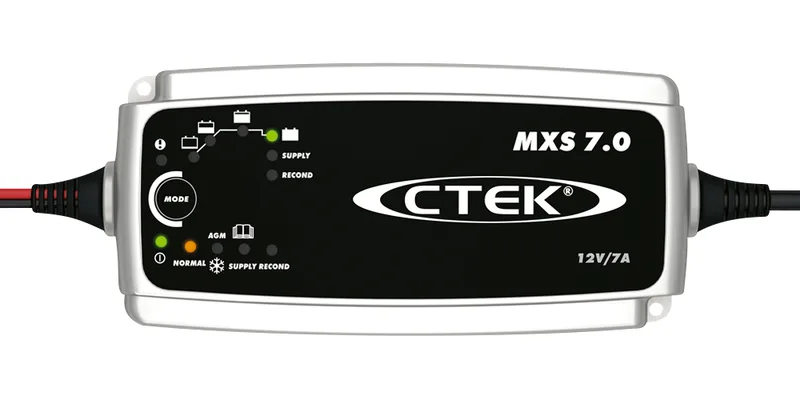

This is the CTEK MXS 7.0, model 1053, for 12 V lead-acid batteries: WET, MF, Ca/Ca, AGM and GEL. It has no lithium charging program. The manual specifies 7.2 A maximum, although the program tables and product face call it 7 A. Its charging range is 14–150 Ah, with maintenance up to 225 Ah, and its battery-detection start voltage is 2.0 V.

The English manual supplied by CTEK's UK manual selector specifies 220–240 VAC, 50–60 Hz. Use the regional plug fitted to the unit; this is not a universal-input 120 V charger. See printed page 6.

What do the four canvas terminals represent?

AC L / AC N represent the supplied mains cord. BATT + / BATT − represent the red positive and black return through the Comfort Connect lead. The manual shows clamp and M8 eyelet accessories; these symbols are not exposed screw terminals on the charger.

For an installed negative-ground vehicle battery, connect red to positive and black to chassis away from the battery and fuel pipes, then connect AC. When finished, unplug AC first, then remove black before red. Printed page 6 gives a separate sequence for positive-ground vehicles.

The manual does not give a battery-lead fuse amperage or connection torque. Use the specified accessories and their instructions; neither the 7.2 A output rating nor the canvas's terminal limits establish those values.

How should the programs be chosen?

NORMAL uses 14.4 V for WET, Ca/Ca, MF and most GEL batteries; AGM uses 14.7 V. Choose according to the battery's permitted charging voltage. The normal program's stated temperature range is +5 to +50°C; the AGM program permits −20 to +50°C.

RECOND adds a 15.8 V, 1.5 A recovery step for deeply discharged WET and Ca/Ca batteries. Frequent use can cause water loss and affect connected electronics. It is not a routine program for every chemistry.

SUPPLY provides 13.6 V at 7 A or continuous float maintenance. Spark protection is disabled in this program. Review the program table, printed page 4, before selecting these modes; the charger remembers the chosen program after reconnection.

What do installation and charge completion require?

Keep the charger uncovered and ventilated, never on top of the battery, with cables protected from heat and damage. It is IP65-rated, and output falls automatically at high temperatures. Step 4 means ready to use; step 7 means fully charged. The manual says to disconnect if step 7 has not been reached within 45 hours, rather than leaving an unsuccessful charge unattended.

Fit check

Connect it to the rest of your system.

Describe your setup to draft a system with MXS 7.0 connected. Review the selected parts and cable lengths, then edit the diagram in Crimp.

The model only picks parts and draws the connections. Every wire size and fuse rating still comes from Crimp's own sizing, never from the model.

Enable JavaScript to describe your system.

Technical reference

Specifications and terminal map.

Check the model, ratings and connection points against your own unit before choosing installation hardware.

Catalog specification

12 V lead-acid charger, 7.2 A maximum, for 14–150 Ah batteries and maintenance up to 225 Ah. Model 1053 uses 220–240 VAC and has Normal, AGM, Recond and 13.6 V Supply programs; no lithium mode. IP65-rated, with clamp and Comfort Connect eyelet leads.

Rated output
7.2 A
Planning charge current
7.2 A

Terminal map

Catalog connection points, current direction and planning limits. Check the manufacturer's pinout and connector ratings before installation.

AC L

neutral · input

4 A

AC N

neutral · input

4 A

BATT +

positive · output

7.2 A

BATT −

negative · output

7.2 A
Sources and sizing method

Equipment specifications. Model details, ratings and terminal roles come from the catalog. Check your unit’s label and current manufacturer documentation for its exact revision.

Example sizing. Sized against ABYC E-11. Boats built to UK or EU rules answer to ISO 13297 — check these figures against it before you build. Results use the example current and run length shown above. Set your actual equipment, lengths and installation conditions in Crimp before choosing hardware.
